PTVS18VS1UR,115
Identity
- Manufacturer: Nexperia(安世)
- Model / MPN: PTVS18VS1UR,115
- LCSC: C553384
- Category: tvs-diode
- Description: PTVS18VS1UR,115 TVS Polarity:Unidirectional Reverse Stand-Off Voltage (Vrwm):18V Clamping Voltage:29.2V Peak Pulse Current (Ipp):13.7A Peak Pulse Power Dissipation (Ppp):400W Voltage - Breakdown:20V Reverse Leakage Current (Ir):1nA level of protection:IEC 61000-4-2 Type:TVS
- Source: EasyEDA/JLC verified common component seed
- Project designators: Not project-specific
- Project quantity per board: Not project-specific
Capabilities
- Not captured yet.
Package And Footprint

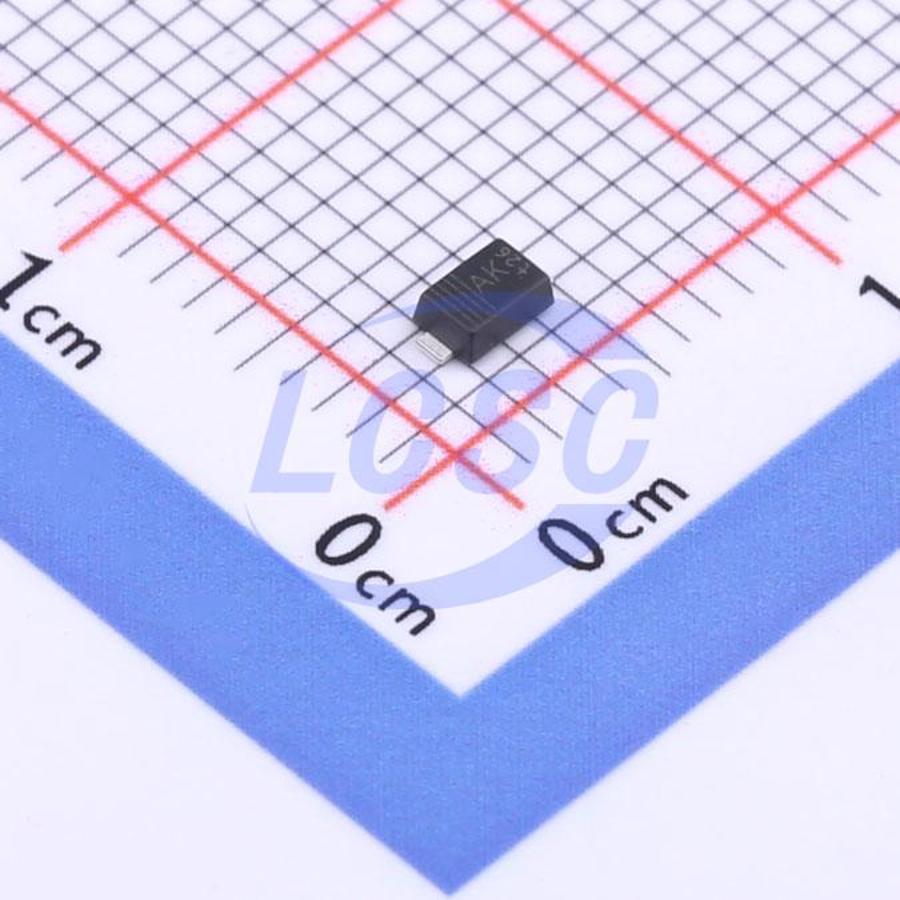

- Package / footprint name: SOD-123W
- Pin count: Unknown
- EasyEDA symbol UUID: d0a015e4cffe4899a913d1dc6f4f34e1
- EasyEDA footprint UUID: 14e00bb82ab54da79822c4c0898efe45
- EasyEDA device UUID: ca1a0ee6364240f6afb026e28c2ab23f
- EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87
Power And Operating Modes
- Active current: Passive part; no quiescent current.
- Sleep / standby current: Passive part; no quiescent current.
- Supply rails: Application-defined.
- Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.
Procurement Classification
- JLC class: Extended Part
- JLC note / assembly basis: EasyEDA/JLC verified automotive load-dump and transient input protection seed
- Assembly status: jlc_extended
- Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
- Live stock: intentionally not stored as durable selection data; refresh externally before ordering.
Datasheet And Links
- Datasheet / product URL: https://item.szlcsc.com/datasheet/PTVS18VS1UR%252C115/574391.html
- Product URL: https://item.szlcsc.com/datasheet/PTVS18VS1UR%252C115/574391.html
- Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.
Selection Notes
- Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
- Avoid when: Not captured yet.
- Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
- Equivalent search hints: match category
tvs-diode, interfaces none captured, packageSOD-123W, and EasyEDA footprint UUID14e00bb82ab54da79822c4c0898efe45.
