SY6280AAC

Identity

• Manufacturer: Silergy(矽力杰)
• Model / MPN: SY6280AAC
• LCSC: C55136
• Category: load-switch
• Description: Low-loss power distribution high-side switch, 1 channel, active high, 2.4V5.5V, 80mΩ RDS(on), -40°C+125°C, OTP/overcurrent features.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

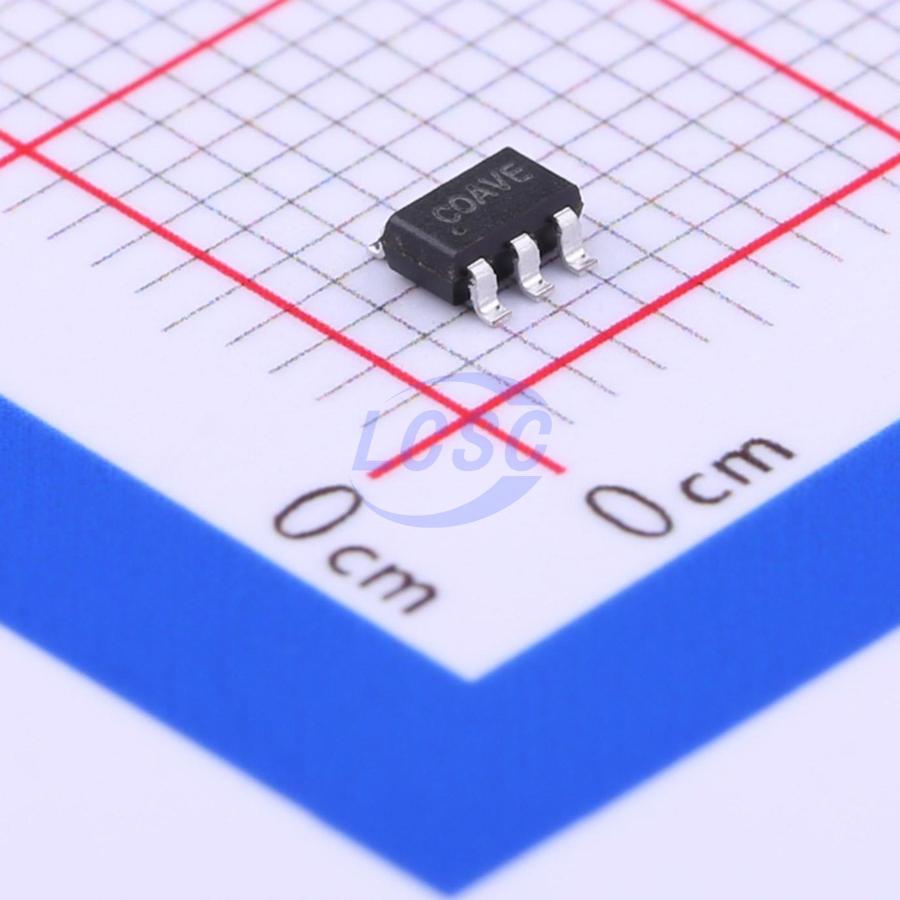

• Package / footprint name: SOT-23-5
• Pin count: 5
• EasyEDA symbol UUID: 2220116a77604423ba00744718250845
• EasyEDA footprint UUID: f2785a7a800f4327acd4dfdd25d8d5e3
• EasyEDA device UUID: 734d3b6f171c4c83ac2960b147e2adc8
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common connectors, power, UI, and protection seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/SY6280AAC/56162.html
• Product URL: https://item.szlcsc.com/datasheet/SY6280AAC/56162.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category load-switch, interfaces gpio, package SOT-23-5, and EasyEDA footprint UUID f2785a7a800f4327acd4dfdd25d8d5e3.
