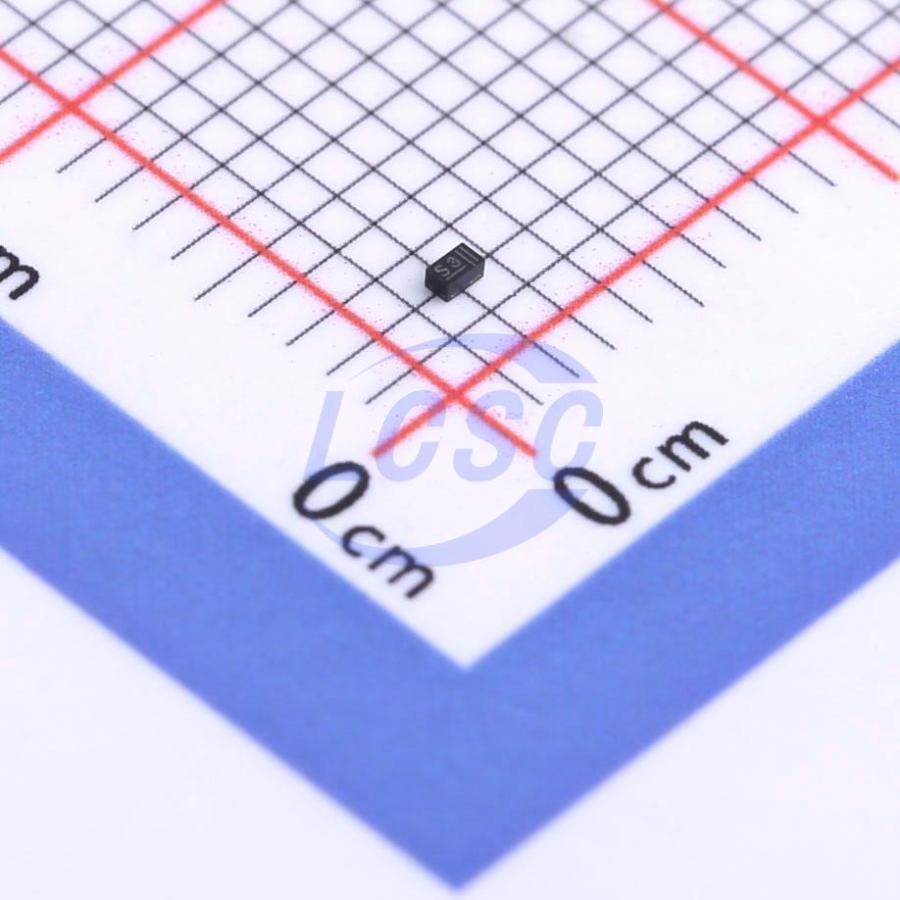

BAT54CM,315

Identity

Manufacturer: Nexperia(安世)
Model / MPN: BAT54CM,315
LCSC: C549275
Category: schottky-diode
Description: Common-cathode Schottky diode pair, 30V Vr, 200mA rectified, 800mV@100mA Vf, 2uA@25V leakage, 600mA surge.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: SOT-883
Pin count: Unknown
EasyEDA symbol UUID: 32a4912350f045109e55d123c3693064
EasyEDA footprint UUID: 0d618c2958f743af9919b5955ed36418
EasyEDA device UUID: 739f43aac3c244e5b4d96cfa21500a6c
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: 30V
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common passives and discretes seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/BAT54CM%252C315/570343.html
Product URL: https://item.szlcsc.com/datasheet/BAT54CM%252C315/570343.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category schottky-diode, interfaces none captured, package SOT-883, and EasyEDA footprint UUID 0d618c2958f743af9919b5955ed36418.
