JXT-PM1.27-2X5P-A1

Identity

Manufacturer: JXTCONN(聚兴泰)
Model / MPN: JXT-PM1.27-2X5P-A1
LCSC: C54803375
Category: debug-header

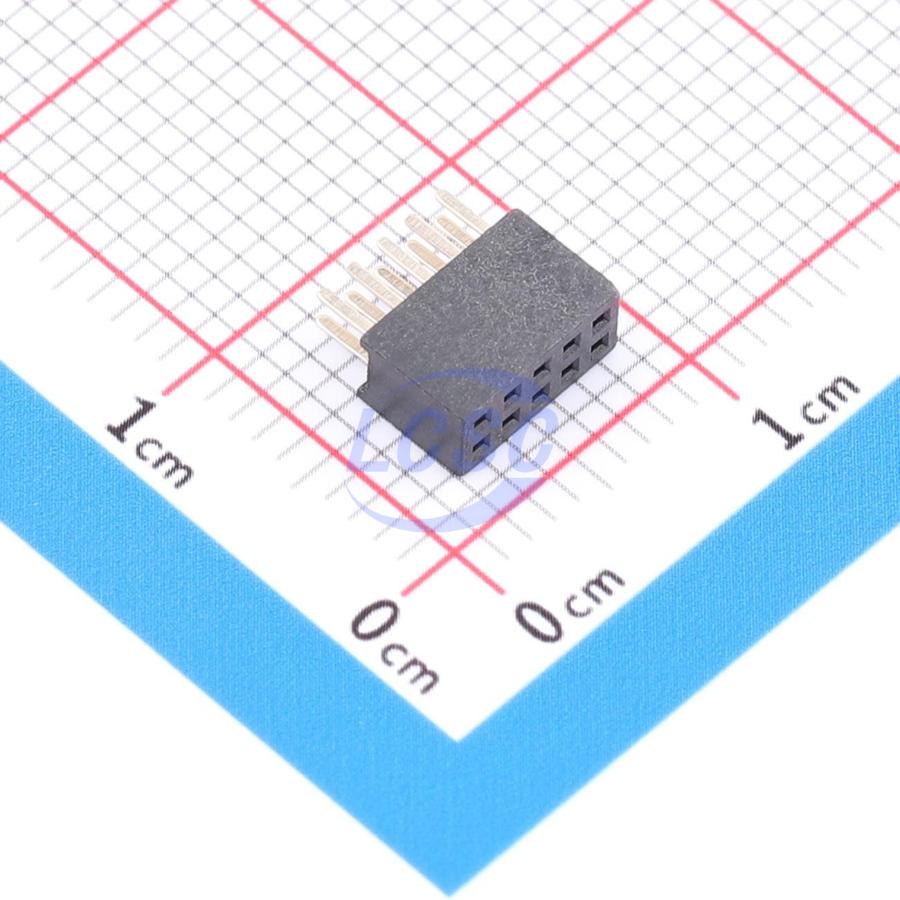

Description: 2x5P through-hole debug header, 1.27mm pitch, 1.27mm row spacing, 10P, square holes, top entry, 1A, 4.3mm insulation height.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface

Package And Footprint

Package / footprint name: 插件,P=1.27mm
Pin count: Unknown
EasyEDA symbol UUID: bb9d167b19714a7fb089429cb4c71ee4
EasyEDA footprint UUID: b9e3cec5c2c44995bdf3b59734f305ab
EasyEDA device UUID: df1f8b8f52d04fa3aa9f46bd00940f4b
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/JXT-PM1.27-2X5P-A1/58256509.html
Product URL: https://item.szlcsc.com/datasheet/JXT-PM1.27-2X5P-A1/58256509.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: SWD, JTAG, UART, programming, boundary-scan, bring-up, and production-test access headers
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category debug-header, interfaces gpio, package 插件,P=1.27mm, and EasyEDA footprint UUID b9e3cec5c2c44995bdf3b59734f305ab.
