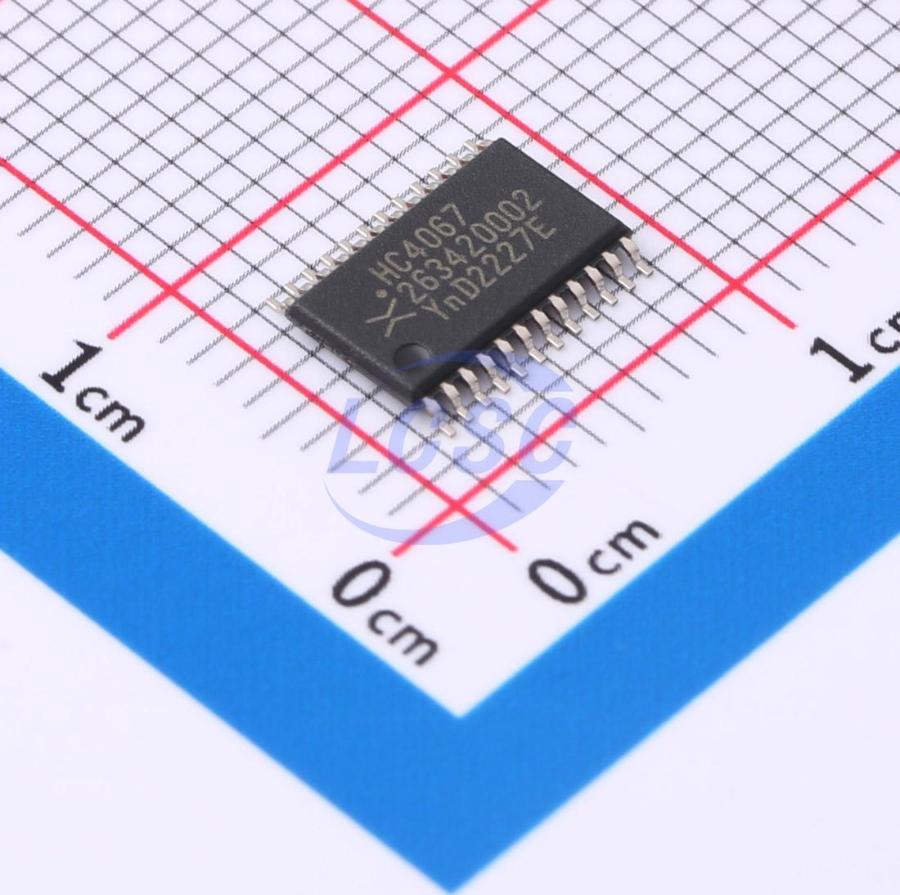

74HC4067PW,112

Identity

• Manufacturer: Nexperia(安世)
• Model / MPN: 74HC4067PW,112
• LCSC: C547038
• Category: analog-mux
• Description: 74HC4067PW,112 2V10V Switch Circuit:16:1 Number of Channels:1 Ron:80Ω Voltage - Supply:2V10V Voltage - Supply:2V10V Con:- Turn-on time:29ns Turn-off time:26ns Bandwidth:- Operating Temperature:-40℃+125℃ Operating Temperature:-40℃~+125℃ Propagation Delay (tpd):6ns Features:
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• analog: interface
• gpio: interface

Package And Footprint

• Package / footprint name: TSSOP-24
• Pin count: 24
• EasyEDA symbol UUID: 9722591f47214687af27eccd3f44afe0
• EasyEDA footprint UUID: 7762658b53da4853bb54821c864851da
• EasyEDA device UUID: fadf93d83587442dba64695130cabfcf
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 2V~10V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common logic, level-shifting, bus-interface, and analog-switch seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/74HC4067PW%252C112/568168.html
• Product URL: https://item.szlcsc.com/datasheet/74HC4067PW%252C112/568168.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: multiplexing analog sensors, ADC inputs, resistor ladders, and configurable measurement paths
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category analog-mux, interfaces analog, gpio, package TSSOP-24, and EasyEDA footprint UUID 7762658b53da4853bb54821c864851da.
