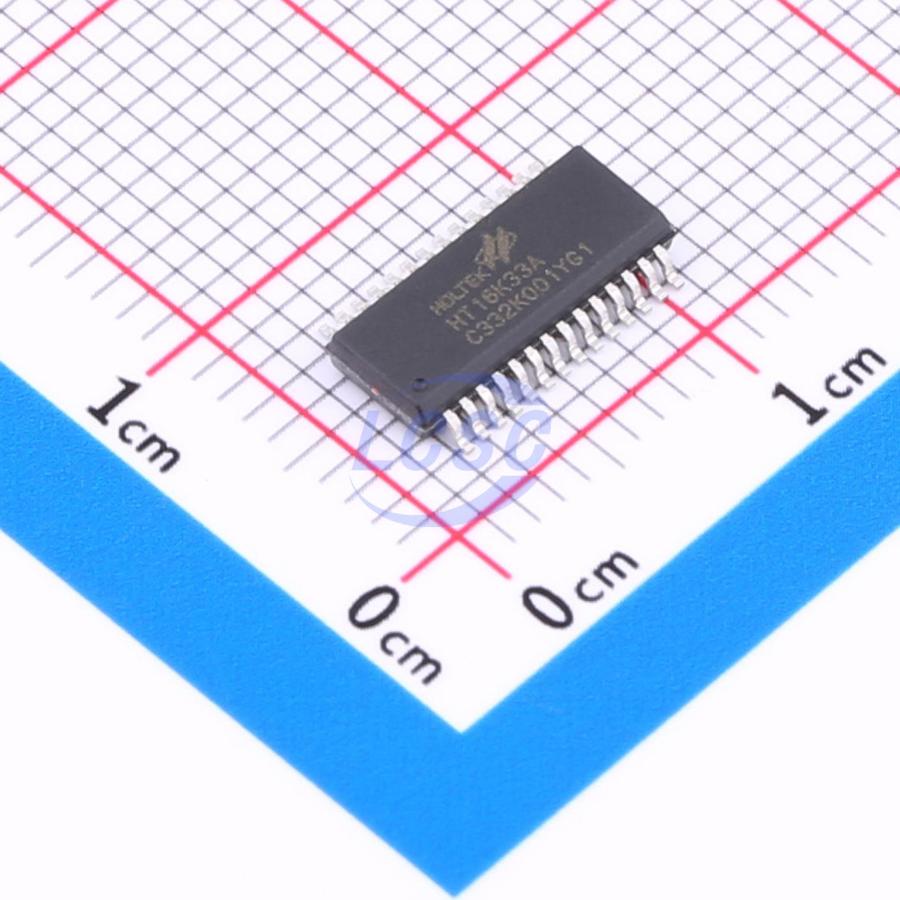

HT16K33A-28SSOP

Identity

Manufacturer: HOLTEK(合泰/盛群)
Model / MPN: HT16K33A-28SSOP
LCSC: C5444738
Category: led-display-driver
Description: RAM-mapped LED driver with key scan, built-in oscillator and integrated key function
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

i2c: interface

Package And Footprint

Package / footprint name: SSOP-28
Pin count: 28
EasyEDA symbol UUID: 7ada87e2ffa34f0685e5281bd24588b4
EasyEDA footprint UUID: 38d7dc5d560840948e980ba2304875b3
EasyEDA device UUID: 7431a40b360d4df98654ce5530cc1d18
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://www.holtek.com.cn/webapi/116706/simHT16K33Av110.pdf
Product URL: https://www.holtek.com.cn/webapi/116706/simHT16K33Av110.pdf
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category led-display-driver, interfaces i2c, package SSOP-28, and EasyEDA footprint UUID 38d7dc5d560840948e980ba2304875b3.
