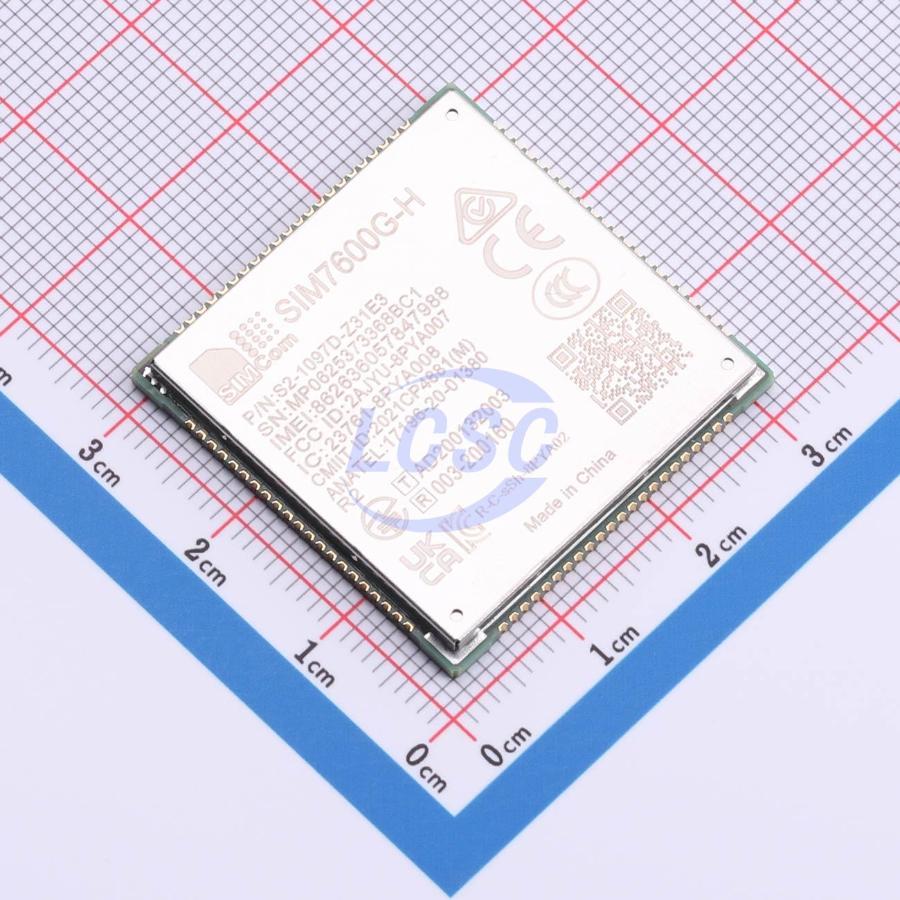

SIM7600G-H
Identity
- Manufacturer: SIMCOM(芯讯通无线科技)
- Model / MPN: SIM7600G-H
- LCSC: C5355477
- Category: cellular-module
- Description: LTE Cat 4 module.
- Source: EasyEDA/JLC verified common component seed
- Project designators: Not project-specific
- Project quantity per board: Not project-specific
Capabilities
- uart: interface
- usb: interface
- sim: interface
Package And Footprint
- Package / footprint name: SMD,30x30mm
- Pin count: Unknown
- EasyEDA symbol UUID: c11af2f9b7a14265bde885b2c8b7feb7
- EasyEDA footprint UUID: 88bcf590a2ce42ef93b96b48c1b7cf1f
- EasyEDA device UUID: 773fcd74793741288ff417595469b68a
- EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87
Power And Operating Modes
- Active current: Not characterized in seed; extract active current from datasheet tables.
- Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
- Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
- Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.
Procurement Classification
- JLC class: Extended Part
- JLC note / assembly basis: EasyEDA/JLC verified common connectivity, positioning, and RF interface seed
- Assembly status: jlc_extended
- Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
- Live stock: intentionally not stored as durable selection data; refresh externally before ordering.
Datasheet And Links
- Datasheet / product URL: https://item.szlcsc.com/datasheet/SIM7600G-H/6156264.html
- Product URL: https://item.szlcsc.com/datasheet/SIM7600G-H/6156264.html
- Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.
Selection Notes
- Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
- Avoid when: Not captured yet.
- Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
- Equivalent search hints: match category
cellular-module, interfaces uart, usb, sim, packageSMD,30x30mm, and EasyEDA footprint UUID88bcf590a2ce42ef93b96b48c1b7cf1f.
