SM04B-NSHSS-TB(LF)(SN)

Identity

Manufacturer: JST
Model / MPN: SM04B-NSHSS-TB(LF)(SN)
LCSC: C5329994
Category: jst-sh-connector

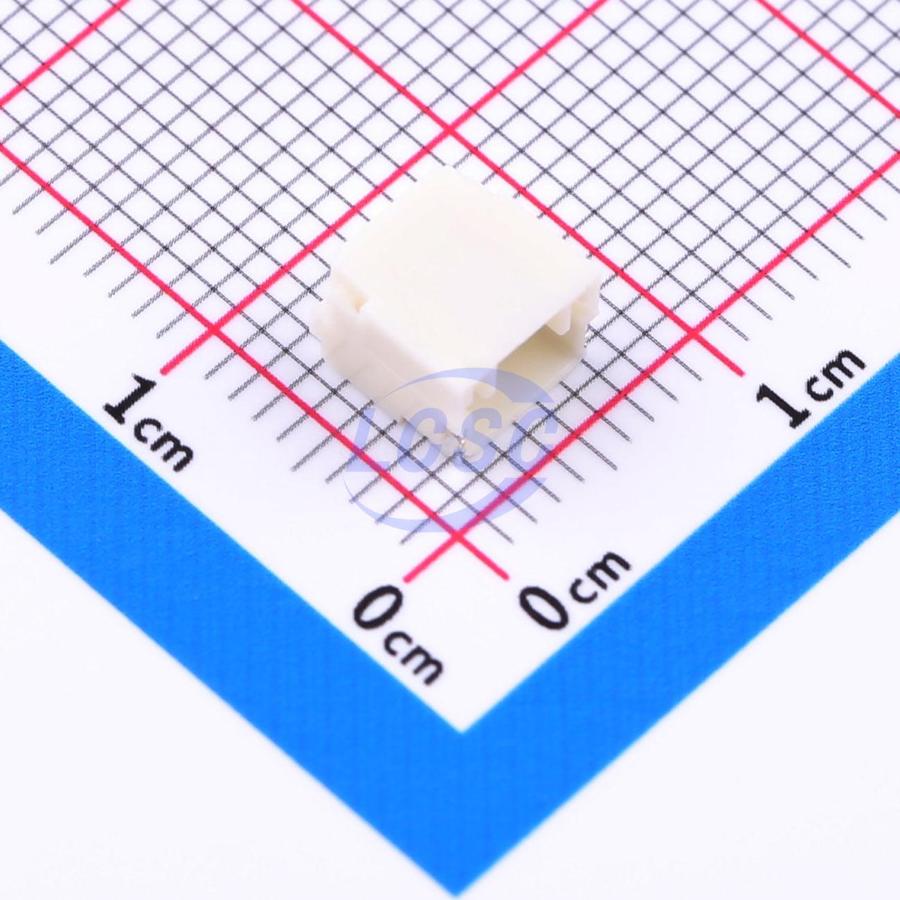

Description: NSH series 1x4P horizontal connector, 1mm pitch, 1A max, copper alloy contacts, tin plating.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

i2c: interface

Package And Footprint

Package / footprint name: SMD,P=1mm,卧贴
Pin count: Unknown
EasyEDA symbol UUID: 2efb12bf70454ab4932e626cdce4c2df
EasyEDA footprint UUID: 68f60bfd4ceb43a186579abf38d831f3
EasyEDA device UUID: 80de1825853649a0b644ab2fac22d8e0
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connectors, power, UI, and protection seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://atta.szlcsc.com/upload/public/pdf/source/20211104/2FDBB96A72BC4030AF635D8E55A2DD83.pdf
Product URL: https://atta.szlcsc.com/upload/public/pdf/source/20211104/2FDBB96A72BC4030AF635D8E55A2DD83.pdf
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category jst-sh-connector, interfaces i2c, package SMD,P=1mm,卧贴, and EasyEDA footprint UUID 68f60bfd4ceb43a186579abf38d831f3.
