NANO SIM 7P 1.37H PUSH

Identity

Manufacturer: JXTCONN(聚兴泰)
Model / MPN: NANO SIM 7P 1.37H PUSH
LCSC: C53207808
Category: sim-card-connector

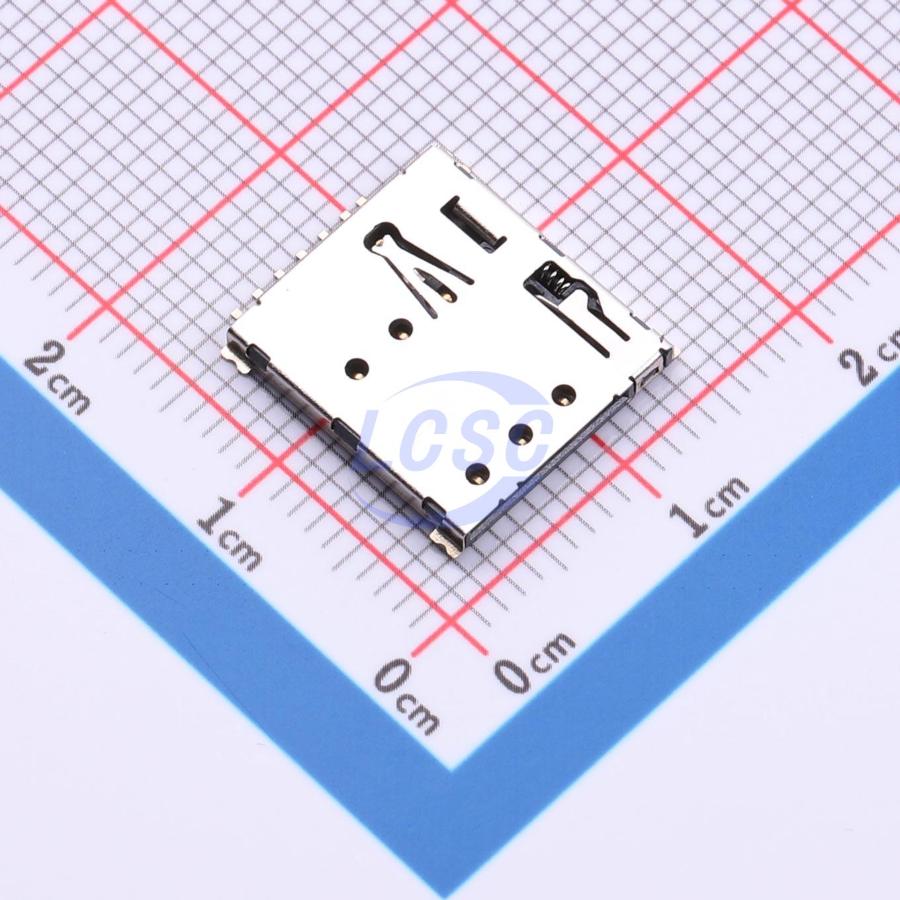

Description: Push-push Nano-SIM card connector with ejector and card detect, 1.37mm height above board, -40°C~+85°C.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

sim: interface

Package And Footprint

Package / footprint name: SMD
Pin count: Unknown
EasyEDA symbol UUID: 86fa66e46f8a448f972880a95789fcde
EasyEDA footprint UUID: c83a3b097cdd49f4b72854eb0218c90a
EasyEDA device UUID: 0b5d72a47c1743028f6b9e619bbe3d93
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connectivity, positioning, and RF interface seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/NANO%2520SIM%25207P%25201.37H%2520PUSH/56243873.html
Product URL: https://item.szlcsc.com/datasheet/NANO%2520SIM%25207P%25201.37H%2520PUSH/56243873.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category sim-card-connector, interfaces sim, package SMD, and EasyEDA footprint UUID c83a3b097cdd49f4b72854eb0218c90a.
