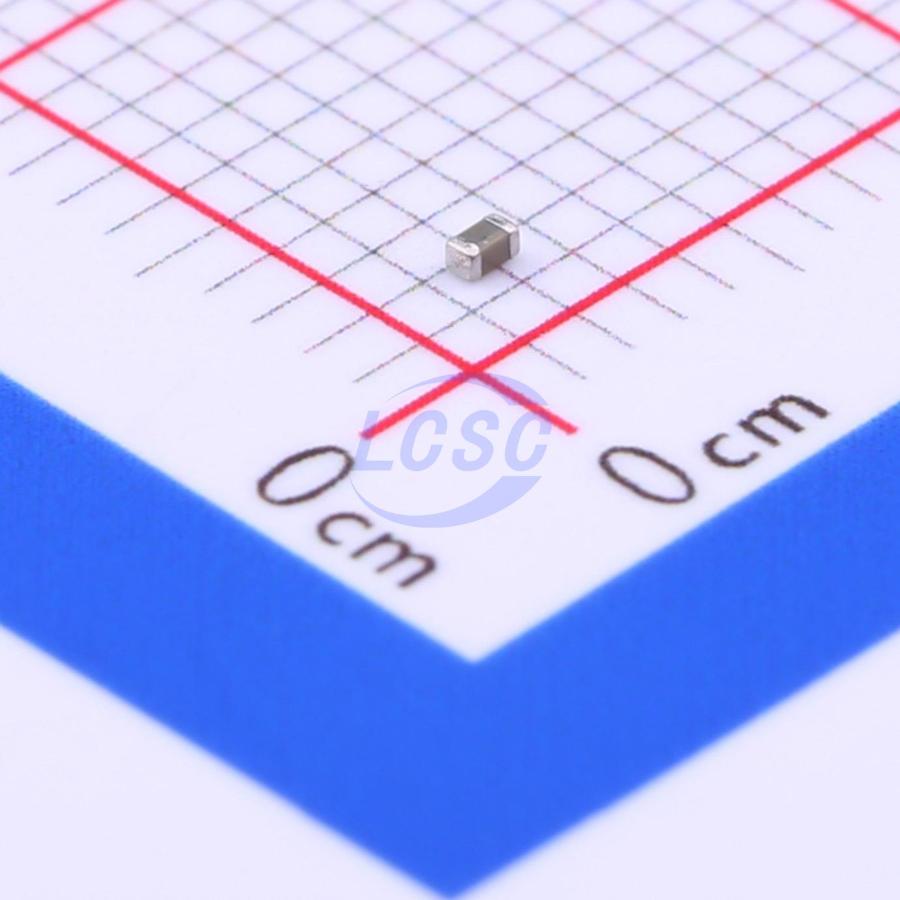

CL05A105KA5NQNC

Identity

Manufacturer: SAMSUNG(三星)
Model / MPN: CL05A105KA5NQNC
LCSC: C52923
Category: capacitor
Description: 1uF ±10% 25V 1uF ±10% 25V Capacitance:1uF Tolerance:±10% Tolerance:±10% Voltage Rating:25V Temperature Coefficient:X5R
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 0402
Pin count: Unknown
EasyEDA symbol UUID: ba2c4348ba7241bd99a54111a889d74b
EasyEDA footprint UUID: 6fbbb009724a4aee93b46abcd7ad26b6
EasyEDA device UUID: 115c3169541a48b3ba9c88523dfbcdee
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: 25V
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Basic Part
JLC note / assembly basis: EasyEDA/JLC verified resistor and capacitor value/package expansion seed
Assembly status: jlc_basic
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/CL05A105KA5NQNC/53938.html
Product URL: https://item.szlcsc.com/datasheet/CL05A105KA5NQNC/53938.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category capacitor, interfaces none captured, package 0402, and EasyEDA footprint UUID 6fbbb009724a4aee93b46abcd7ad26b6.

Search Keywords

seed:common-passive-value-expansion, source:easyeda-bridge, common-pcb, passive-library, 1uf, 0402, decoupling, local-bulk, basic-part, capacitor, jlc-basic, jlc_basic, jlc-note:easyeda-jlc-verified-resistor-and-capacitor-value-package-expansion-seed
