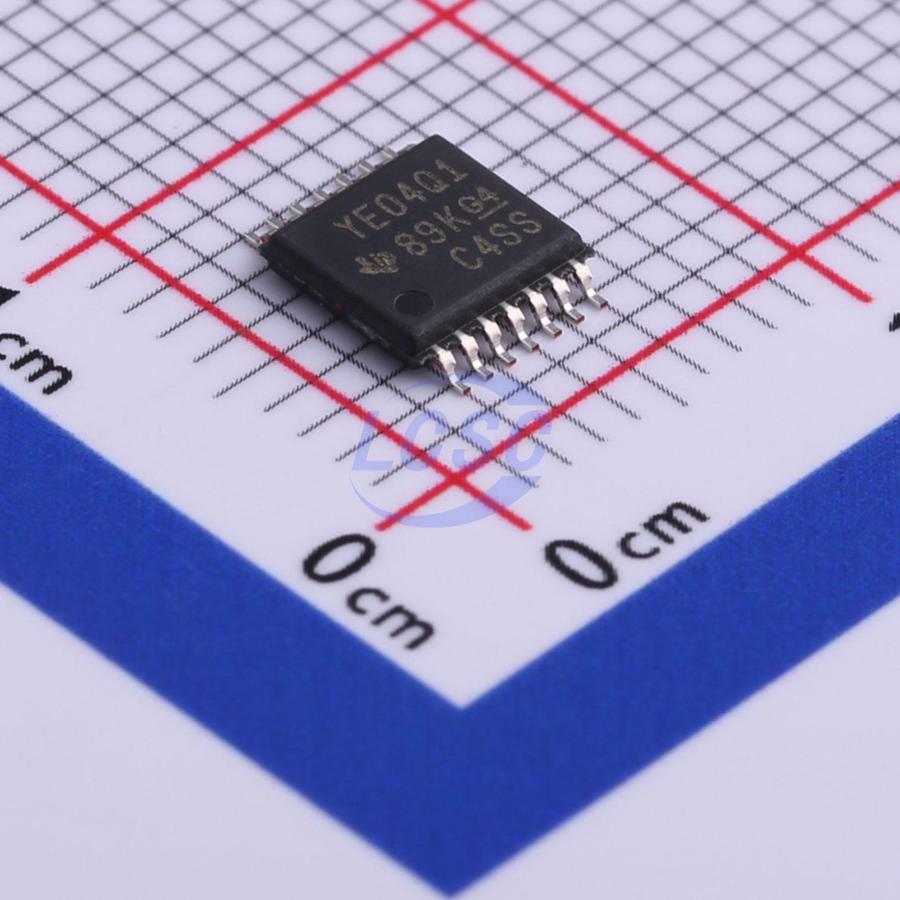

TXB0104QPWRQ1

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: TXB0104QPWRQ1
• LCSC: C527571
• Category: level-shifter
• Description: TXB0104QPWRQ1 Channel Type:Bidirectional Data Rate:- Voltage - Supply(VCCA):1.2V3.6V Voltage - Supply(VCCA):1.2V3.6V Voltage - Supply(VCCB):1.65V5.5V Voltage - Supply(VCCB):1.65V5.5V Number of Circuits:1 Number of Circuits:4 Output Type:Tri-State Operating Temperat
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: TSSOP-14
• Pin count: 14
• EasyEDA symbol UUID: ce59542f74e341a2a1badb83cf34c0b3
• EasyEDA footprint UUID: 3a18931fbc63470295d9ef89313f5e05
• EasyEDA device UUID: 50321e7f2cd8400cad903915d9598e85
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common logic, level-shifting, bus-interface, and analog-switch seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/txb0104-q1
• Product URL: https://www.ti.com/cn/lit/gpn/txb0104-q1
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category level-shifter, interfaces gpio, package TSSOP-14, and EasyEDA footprint UUID 3a18931fbc63470295d9ef89313f5e05.
