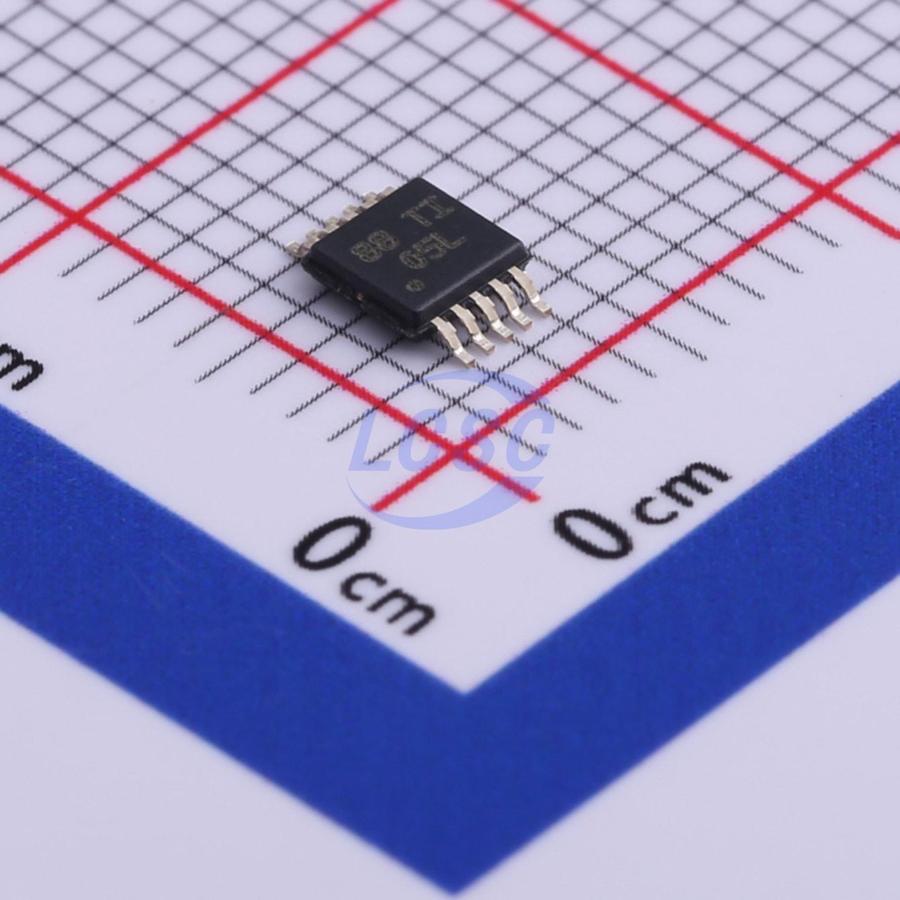

DRV2605LDGSR

Identity

Manufacturer: TI(德州仪器)
Model / MPN: DRV2605LDGSR
LCSC: C527464
Category: haptic-driver
Description: 5.5V motor driver IC, 1 H-bridge, I2C, 2V~~5.2V supply, 500uA Iq, -40°C~~+85°C.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

i2c: interface

Package And Footprint

Package / footprint name: VSSOP-10-0.5mm
Pin count: Unknown
EasyEDA symbol UUID: 9ff70ff74cc3413e8d95ac97358f301b
EasyEDA footprint UUID: b7a4dec7fad6447e9a166a8f5483c35d
EasyEDA device UUID: 4495a740a6d04b77bfd8d221eac3fb88
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 2V~5.2V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common HMI, display, audio, touch, and haptic seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://www.ti.com/cn/lit/gpn/drv2605l
Product URL: https://www.ti.com/cn/lit/gpn/drv2605l
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: vibration alerts, silent notifications, tactile feedback, and small ERM/LRA motor drive
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category haptic-driver, interfaces i2c, package VSSOP-10-0.5mm, and EasyEDA footprint UUID b7a4dec7fad6447e9a166a8f5483c35d.

Search Keywords

seed:common-hmi-display-audio, source:easyeda-bridge, iot, common-pcb, hmi, display, audio, drv2605l, i2c, erm, lra, haptic, vibration, haptic-driver, vssop-10-0.5mm, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-common-hmi-display-audio-touch-and-haptic-seed
