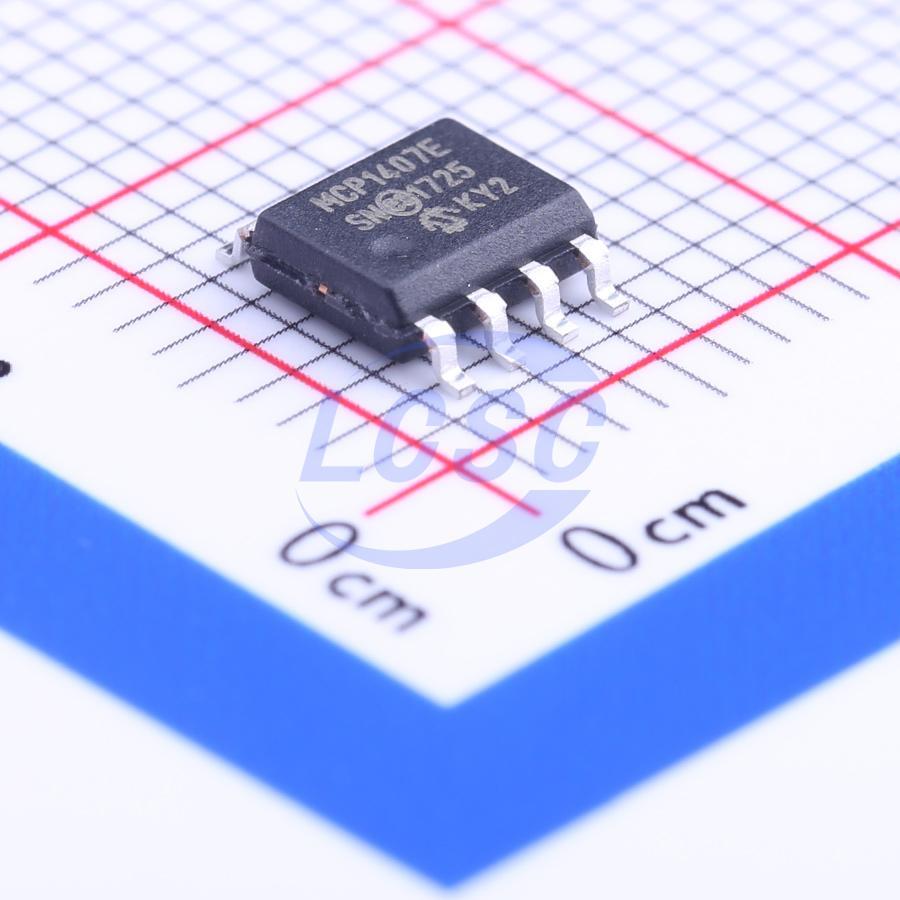

MCP1407-E/SN

Identity

Manufacturer: MICROCHIP(美国微芯)
Model / MPN: MCP1407-E/SN
LCSC: C52138
Category: gate-driver
Description: 6A high-speed MOSFET gate driver, 1 driver, 6A IOL/IOH, 4.5V~18V supply, 20ns rise/fall time.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface
pwm: interface

Package And Footprint

Package / footprint name: SOP-8
Pin count: 8
EasyEDA symbol UUID: 519f9a9464704145ba569bcc3c5e2ab2
EasyEDA footprint UUID: 114ea734da1646a1859a103ac7dff343
EasyEDA device UUID: bb3010ba8c3545b8a334633a84c41587
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 4.5V~18V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/MCP1407-E%252FSN/53152.html
Product URL: https://item.szlcsc.com/datasheet/MCP1407-E%252FSN/53152.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category gate-driver, interfaces gpio, pwm, package SOP-8, and EasyEDA footprint UUID 114ea734da1646a1859a103ac7dff343.

Search Keywords

seed:common-drivers-isolation-actuation, source:easyeda-bridge, iot, common-pcb, mcp1407, single, mosfet-driver, 6a, low-side, gate-driver, sop-8, jlc-extended, gpio, pwm, jlc_extended, jlc-note:easyeda-jlc-verified-common-drivers-isolation-and-actuation-seed
