MAX31855KASA+T

Identity

• Manufacturer: ADI(亚德诺)/MAXIM(美信)
• Model / MPN: MAX31855KASA+T
• LCSC: C52028
• Category: thermocouple-amplifier
• Description: Cold-junction compensated thermocouple-to-digital converter, 3V3.6V, SPI, Resolution:14, -40°C+125°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• spi: interface

Package And Footprint

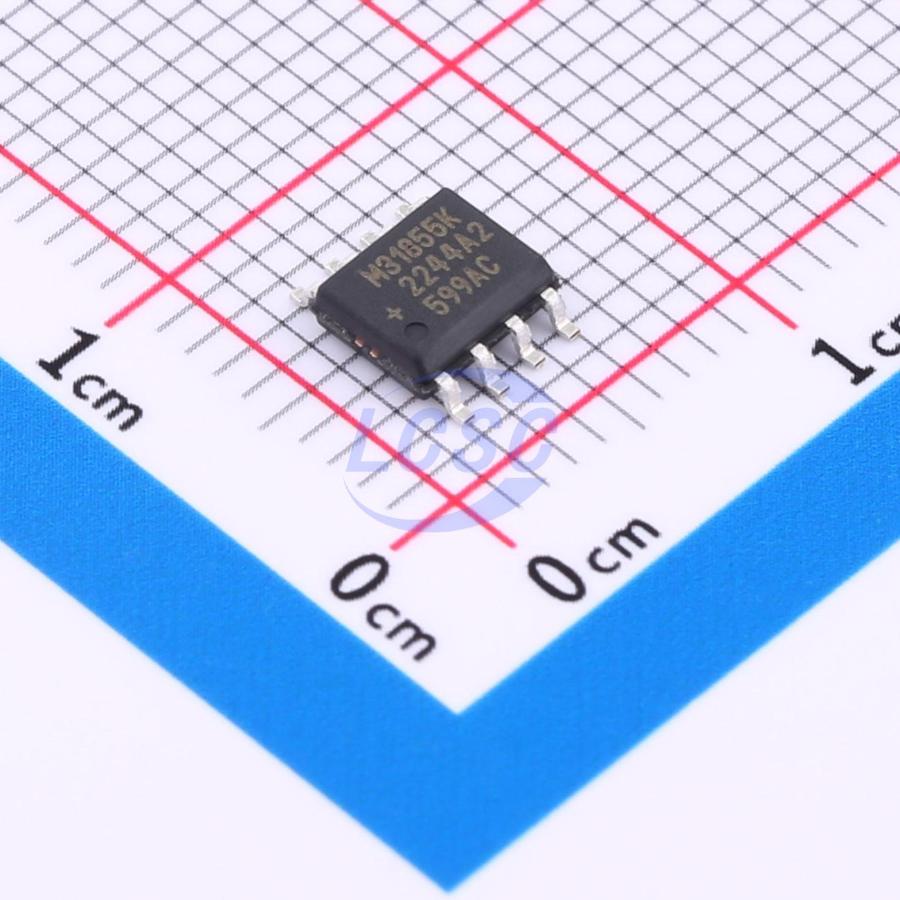

• Package / footprint name: SO-8
• Pin count: Unknown
• EasyEDA symbol UUID: 239b09434c0c48769260a6a282af98e3
• EasyEDA footprint UUID: 9c826c272d144d6da33ee1807862031f
• EasyEDA device UUID: 8555bfc0b2b54a6992d3b8e2cf998a01
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 3V~3.6V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified industrial/machine analog I/O signal-conditioning seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/MAX31855KASA%252BT/53041.html
• Product URL: https://item.szlcsc.com/datasheet/MAX31855KASA%252BT/53041.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category thermocouple-amplifier, interfaces spi, package SO-8, and EasyEDA footprint UUID 9c826c272d144d6da33ee1807862031f.
