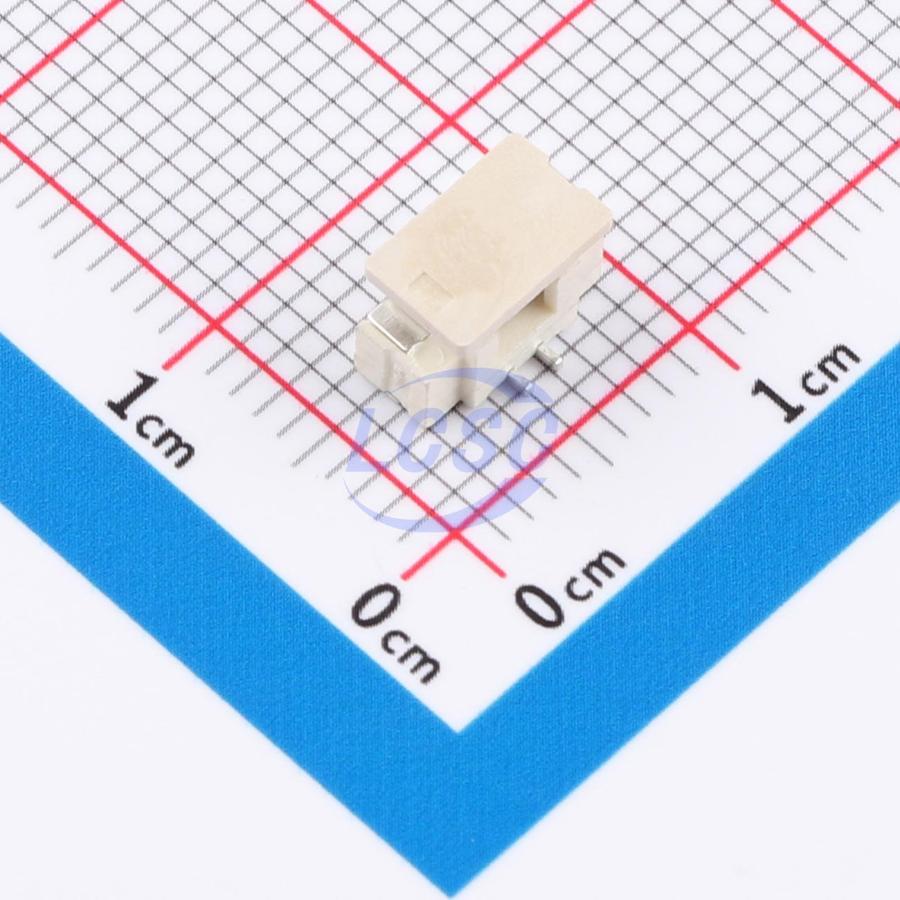

HX-1.25-2ALB wire to board connector

Identity

Manufacturer: hanxia(韩下)
Model / MPN: HX-1.25-2ALB wire to board connector
LCSC: C52016399
Category: wire-to-board-connector
Description: HX-1.25-2ALB 1x2P 1.25mm vertical SMT wire-to-board connector; PicoBlade(MX 1.25); 125V; 2P; 1A; brass, tin plating
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

field-wiring: interface

Package And Footprint

Package / footprint name: SMD,P=1.25mm
Pin count: Unknown
EasyEDA symbol UUID: e845ad43d6b04905909f4ef000962c79
EasyEDA footprint UUID: 553b8ecdaf07476bad67d776da1c25e8
EasyEDA device UUID: 3f836d8ed0ee477ca197e6bf3cfa3972
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: 125V
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/HX-1.25-2ALB%2520wire%2520to%2520board%2520connector/54760444.html
Product URL: https://item.szlcsc.com/datasheet/HX-1.25-2ALB%2520wire%2520to%2520board%2520connector/54760444.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: small battery, sensor, fan, actuator, and enclosure harness connections where detachable wiring is needed
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category wire-to-board-connector, interfaces field-wiring, package SMD,P=1.25mm, and EasyEDA footprint UUID 553b8ecdaf07476bad67d776da1c25e8.
