B2B-XH-A-M(LF)(SN)(P)

Identity

• Manufacturer: JST
• Model / MPN: B2B-XH-A-M(LF)(SN)(P)
• LCSC: C5118732
• Category: jst-xh-connector

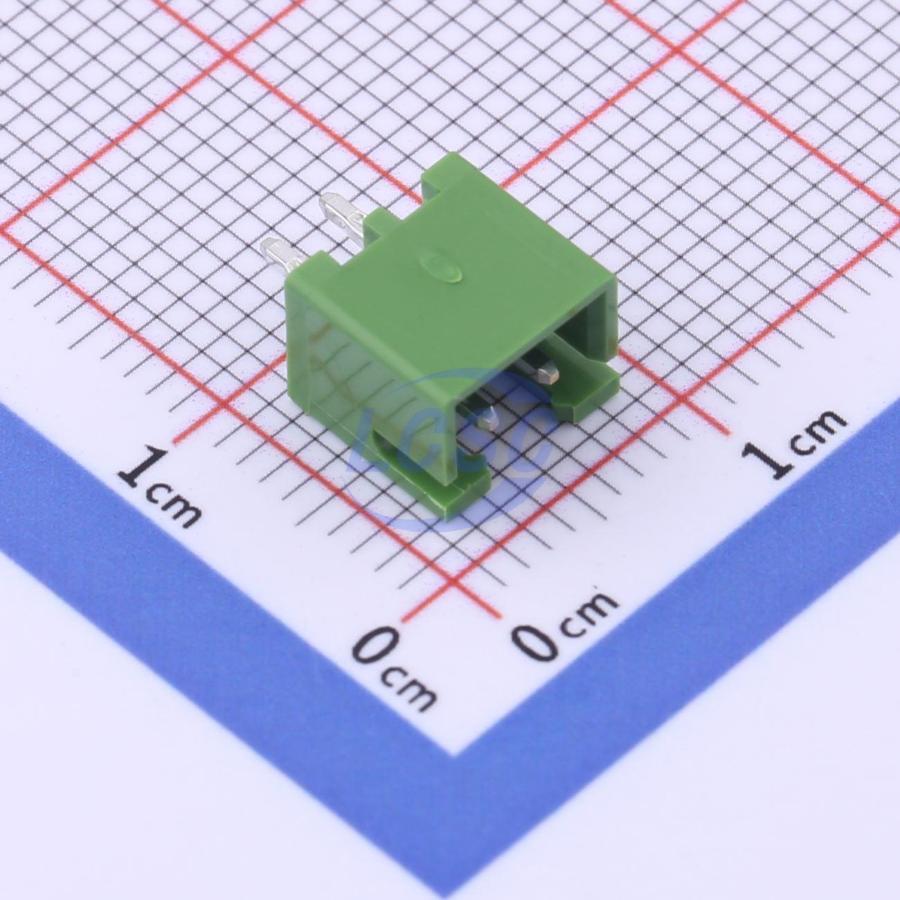

• Description: XH series 1x2P through-hole connector, 2.5mm pitch, 250V, 3A, brass contacts, tin plating, -25°C~+85°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: 插件,P=2.5mm
• Pin count: Unknown
• EasyEDA symbol UUID: 14687ed734e0444fa0b56113cd4a2afe
• EasyEDA footprint UUID: 895381e76f464cb7b511e267c5b704b7
• EasyEDA device UUID: 5bce7b70b6eb41c5854eba9c2c1e9b96
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: 250V
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common connector, HMI, and mechanical interface seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/B2B-XH-A-M(LF)(SN)(P)/5697038.html
• Product URL: https://item.szlcsc.com/datasheet/B2B-XH-A-M(LF)(SN)(P)/5697038.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category jst-xh-connector, interfaces none captured, package 插件,P=2.5mm, and EasyEDA footprint UUID 895381e76f464cb7b511e267c5b704b7.
