XY2500R-DS-5.08-3P

Identity

Manufacturer: XINLAIYA(新莱亚)
Model / MPN: XY2500R-DS-5.08-3P
LCSC: C505843
Category: pluggable-terminal

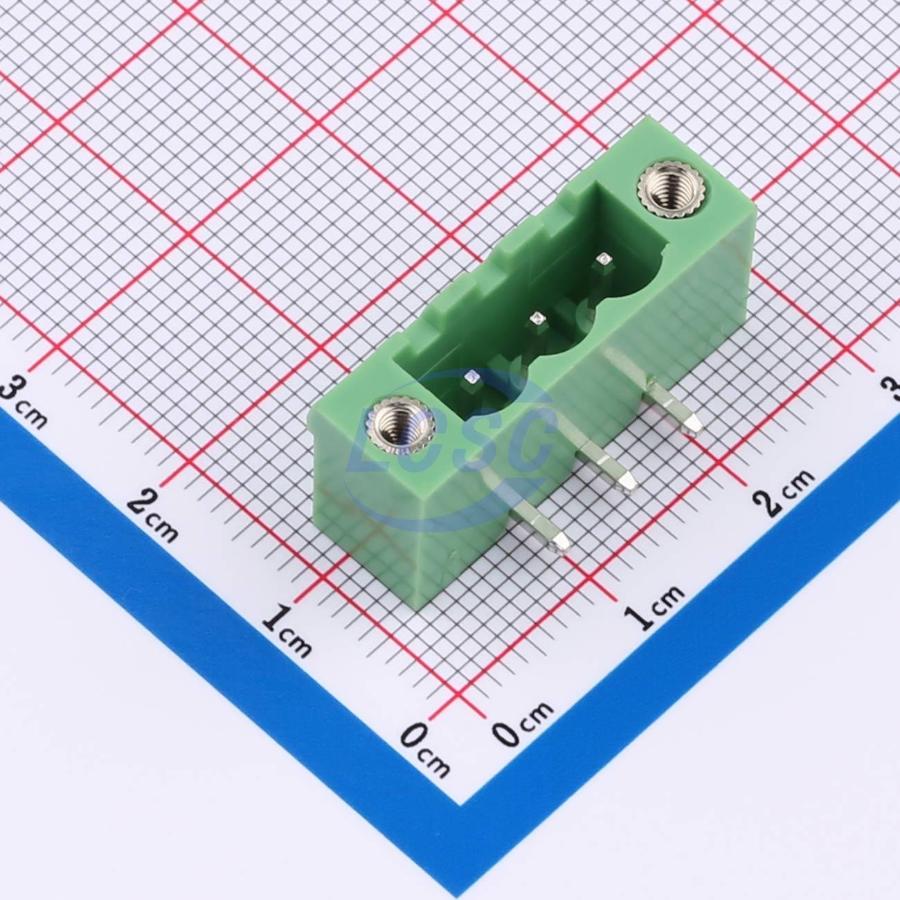

Description: XY2500R-DS-5.08-3P 1x3P 5.08mm right-angle board-side/socket closed pluggable terminal; green; 3P, 1 row; 15A; 300V
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 弯插,P=5.08mm
Pin count: Unknown
EasyEDA symbol UUID: 4a71e7f1de34441eb21a796c9360c666
EasyEDA footprint UUID: 41bcae9db39c48ce8f8e982b618d8367
EasyEDA device UUID: 20f6ad3586704016a3fea866fcbe8c56
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connector, HMI, and mechanical interface seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/XY2500R-DS-5.08-3P/519133.html
Product URL: https://item.szlcsc.com/datasheet/XY2500R-DS-5.08-3P/519133.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category pluggable-terminal, interfaces none captured, package 弯插,P=5.08mm, and EasyEDA footprint UUID 41bcae9db39c48ce8f8e982b618d8367.
