XY2500R-DS-5.08-2P

Identity

Manufacturer: XINLAIYA(新莱亚)
Model / MPN: XY2500R-DS-5.08-2P
LCSC: C505842
Category: pluggable-terminal

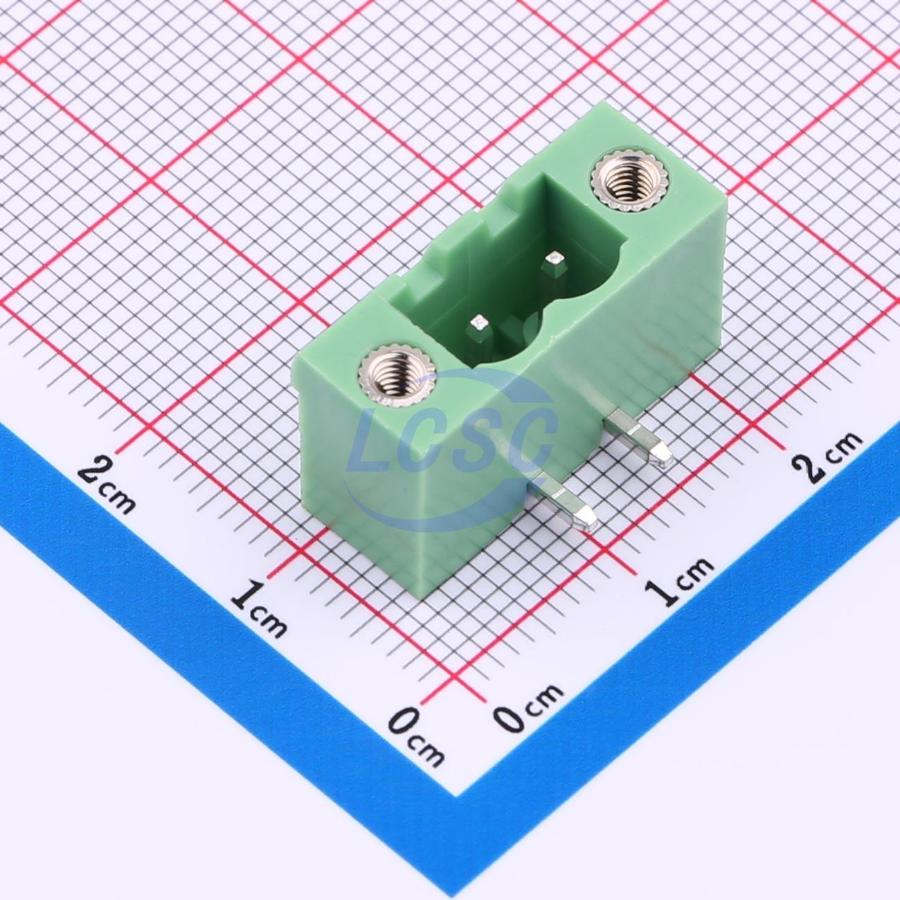

Description: XY2500R-DS-5.08-2P 1x2P 5.08mm right-angle board-side/socket closed pluggable terminal; green; 2P, 1 row; 15A; 300V
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 弯插,P=5.08mm
Pin count: Unknown
EasyEDA symbol UUID: cef882fa7c1344b98e2c68461740415f
EasyEDA footprint UUID: 6142e1ad4fd246a7b91663c1ff858f92
EasyEDA device UUID: b1c40acb0ea24b81848d80a3fec762cc
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connectors, power, UI, and protection seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/XY2500R-DS-5.08-2P/519132.html
Product URL: https://item.szlcsc.com/datasheet/XY2500R-DS-5.08-2P/519132.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category pluggable-terminal, interfaces none captured, package 弯插,P=5.08mm, and EasyEDA footprint UUID 6142e1ad4fd246a7b91663c1ff858f92.

Search Keywords

seed:common-connectors-power-ui, source:easyeda-bridge, iot, common-pcb, terminal-block, 2-pin, 5.08mm, pluggable, wire-to-board, pluggable-terminal, p-5.08mm, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-common-connectors-power-ui-and-protection-seed, connector
