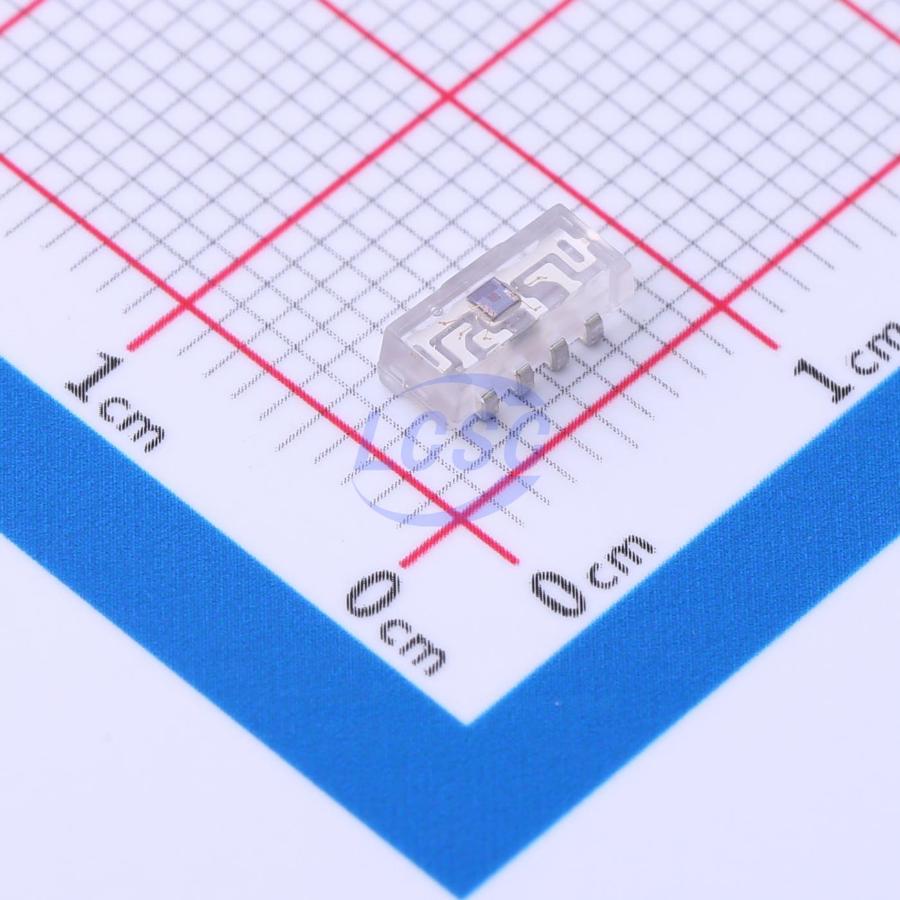

VEML7700-TR

Identity

Manufacturer: VISHAY(威世)
Model / MPN: VEML7700-TR
LCSC: C504893
Category: light-sensor
Description: VEML7700-TR high-accuracy ambient light sensor; I2C; 2.5V~~3.6V; 120klx; 16bit; -25°C~~+85°C; 6.8mm x 2.35mm x 3mm
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

i2c: interface

Package And Footprint

Package / footprint name: SMD-4P
Pin count: 4
EasyEDA symbol UUID: 37d4172758594db48effc49476ab3729
EasyEDA footprint UUID: 0e8d8faad61443f9ae326a4c60a3961e
EasyEDA device UUID: 548fd1e8bef9485f80180b0643b43697
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 2.5V~3.6V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/VEML7700-TR/519982.html
Product URL: https://item.szlcsc.com/datasheet/VEML7700-TR/519982.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: ambient-light measurement, display dimming, day/night detection, optical telemetry, and low-power light triggers
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category light-sensor, interfaces i2c, package SMD-4P, and EasyEDA footprint UUID 0e8d8faad61443f9ae326a4c60a3961e.
