MPU-6500

Identity

• Manufacturer: TDK InvenSense(应美盛)
• Model / MPN: MPU-6500
• LCSC: C50278
• Category: imu
• Description: MPU-6500 1.71V~3.45V I2C；SPI Accelerometer Sensing Axis:X,Y,Z Acceleration Measurement Range (MAX):±16g Acceleration Measurement Range (MAX):±16g Gyroscope Sensing Axis:X,Y,Z Gyroscope Measurement Range (MAX):±2000dps Gyroscope Measurement Range (MAX):±2000dps Sensor Type:IMU (accele
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface
• spi: interface

Package And Footprint

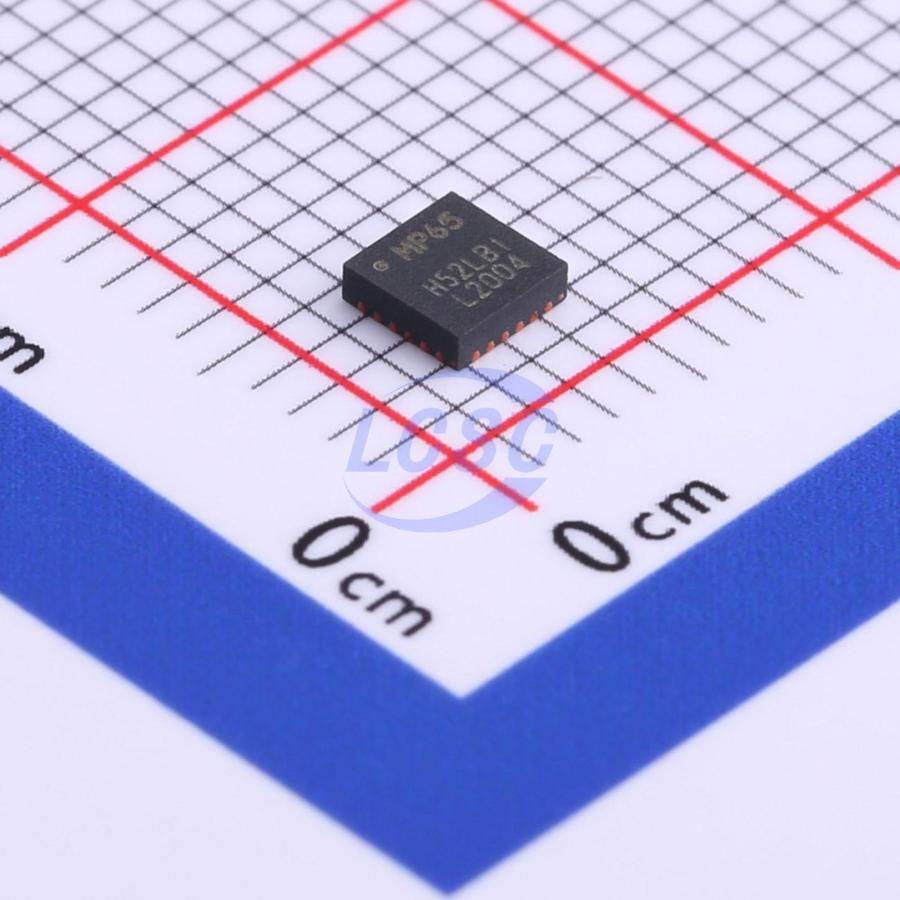

• Package / footprint name: QFN-24-EP(3x3)
• Pin count: 24
• EasyEDA symbol UUID: b06f79e9c9794df1a44af6c294e25feb
• EasyEDA footprint UUID: 1a7b7aa610ad445c87fd7c48dd884dab
• EasyEDA device UUID: f1cc848ed53f4dc38da5a45b1cd2aeac
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: EasyEDA property: 6uA.
• Supply rails: EasyEDA property: 1.71V~3.45V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/MPU-6500/51287.html
• Product URL: https://item.szlcsc.com/datasheet/MPU-6500/51287.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: six-axis motion tracking, vibration, orientation, gesture inputs, dead-reckoning support, and motion-triggered wake
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category imu, interfaces i2c, spi, package QFN-24-EP(3x3), and EasyEDA footprint UUID 1a7b7aa610ad445c87fd7c48dd884dab.
