ESD5Z5V0

Identity

Manufacturer: MDD(辰达半导体)
Model / MPN: ESD5Z5V0
LCSC: C502546
Category: esd-protection
Description: 单向ESD 5V截止峰值脉冲电流：7A ESD Polarity:Unidirectional Reverse Stand-Off Voltage (Vrwm):5V Clamping Voltage:15V Peak Pulse Current (Ipp):7A Peak Pulse Power Dissipation (Ppp):105W Voltage - Breakdown:6.2V Reverse Leakage Current (Ir):80nA Number of Channels:1 Operating Temperature:-55℃
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

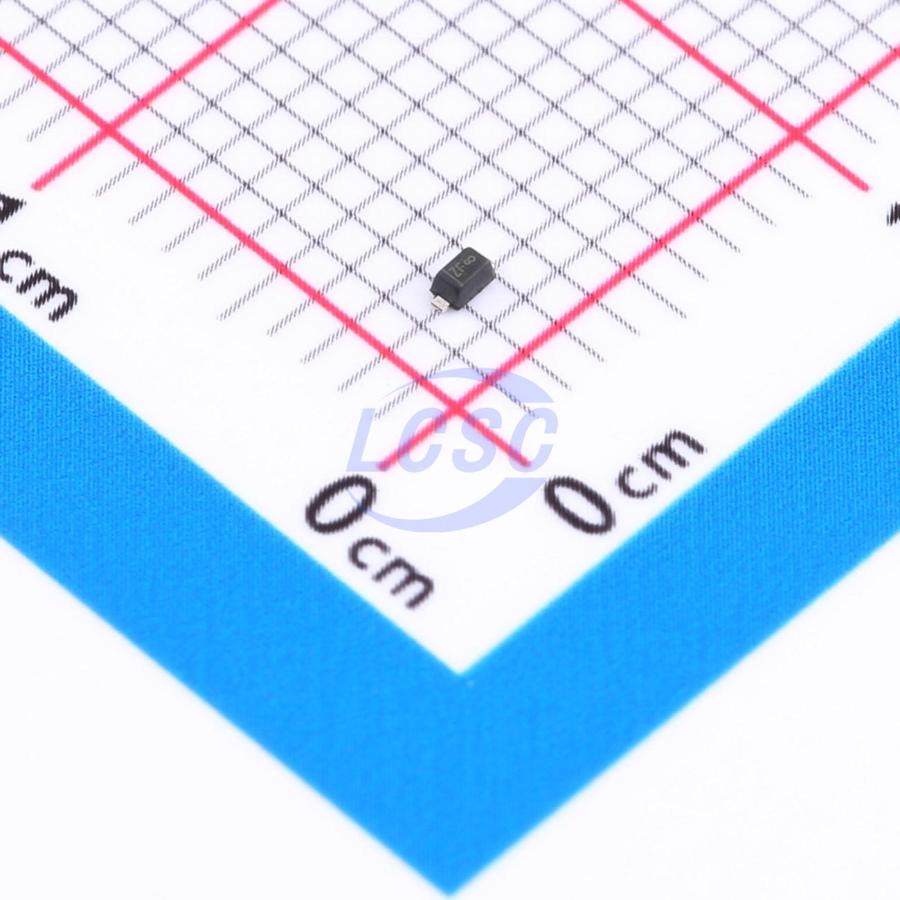

Package / footprint name: SOD-523
Pin count: Unknown
EasyEDA symbol UUID: 0530143fed2f4d5fa8563888c230d843
EasyEDA footprint UUID: 55d2f5df30bc477eb428df305af4a5b8
EasyEDA device UUID: 70afb459e727466fa95319fbe944d015
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified parts for the automotive accessory control module MVP
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/ESD5Z5V0/515052.html
Product URL: https://item.szlcsc.com/datasheet/ESD5Z5V0/515052.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category esd-protection, interfaces none captured, package SOD-523, and EasyEDA footprint UUID 55d2f5df30bc477eb428df305af4a5b8.

Search Keywords

seed:common-accessory-control-module, source:easyeda-bridge, automotive, common-pcb, esd5z5v0, usb-vbus, unidirectional, esd-tvs, esd-protection, sod-523, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-parts-for-the-automotive-accessory-control-module-mvp, power
