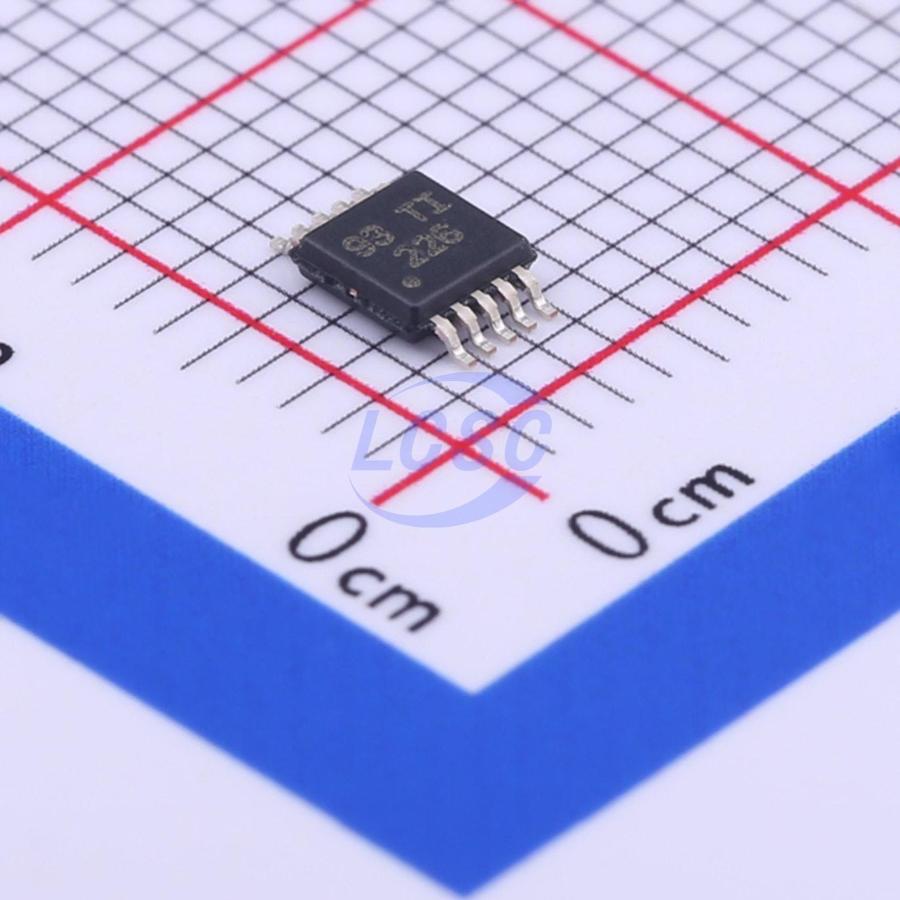

INA226AIDGSR

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: INA226AIDGSR
• LCSC: C49851
• Category: current-monitor
• Description: High-side/low-side bidirectional current/power monitor with I2C-compatible interface, Vcm 300mV40V, 10nA Ib, 2.5uV Vos, -40°C+125°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

• Package / footprint name: VSOP-10
• Pin count: Unknown
• EasyEDA symbol UUID: ec12c6ca7bf647488c1beae44e6b0a33
• EasyEDA footprint UUID: bf471488bcf94b1aa820390f51c4193d
• EasyEDA device UUID: de48eb5d6ca2420085bb2cd6f9f979d2
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common power, analog, and interface IC seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/INA226AIDGSR/50860.html
• Product URL: https://item.szlcsc.com/datasheet/INA226AIDGSR/50860.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: I2C bus-voltage, shunt-current, battery-rail, load-current, and power monitoring
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category current-monitor, interfaces i2c, package VSOP-10, and EasyEDA footprint UUID bf471488bcf94b1aa820390f51c4193d.

Search Keywords

seed:common-power-analog-interface, source:easyeda-bridge, iot, common-pcb, ina226, i2c, current-monitor, power-monitor, bus-voltage, shunt-current, high-side, low-side, 36v, vsop-10, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-common-power-analog-and-interface-ic-seed
