KH-1.27PH180-2X5P-L7.2-SMT

Identity

• Manufacturer: kinghelm(金航标)
• Model / MPN: KH-1.27PH180-2X5P-L7.2-SMT
• LCSC: C4943297
• Category: debug-header

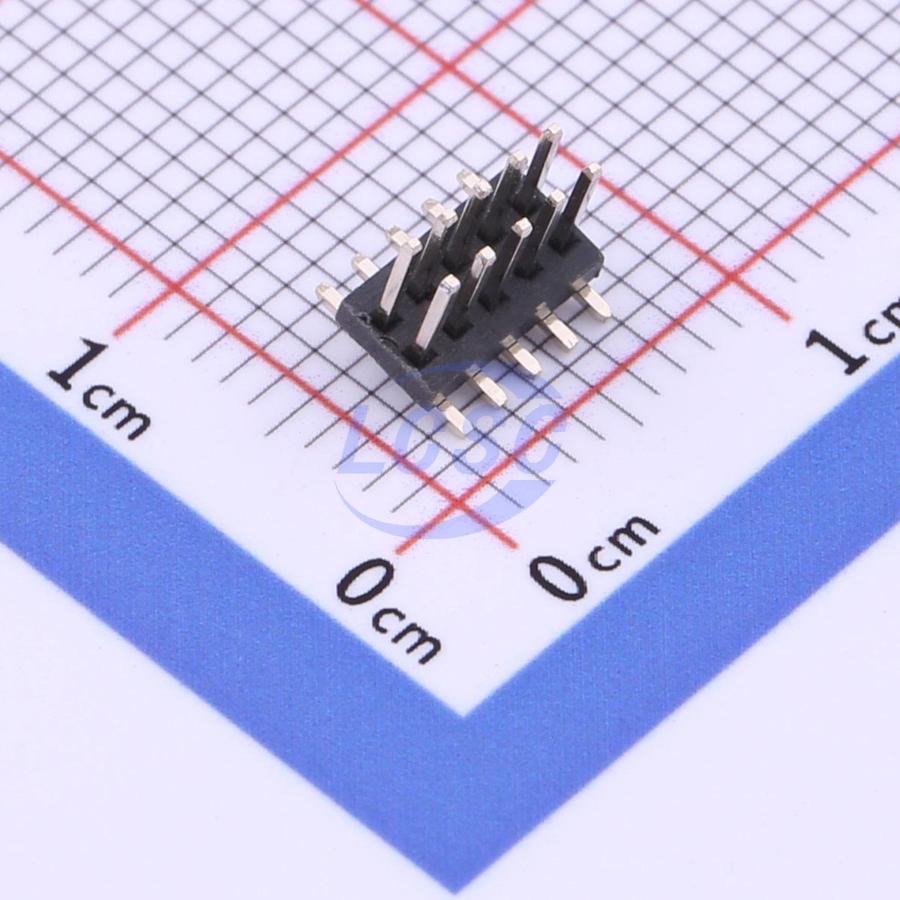

• Description: KH-1.27PH180-2X5P-L7.2-SMT 2x5P 1.27mm vertical SMT pin header; row spacing 1.27mm; 10P; 1A; mating pin 4mm; insulator 1mm
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: SMD,P=1.27mm
• Pin count: Unknown
• EasyEDA symbol UUID: 0901d5ed954b48de9c4b70b1c8395373
• EasyEDA footprint UUID: 356cccd286c24df5b946235eab56a4f4
• EasyEDA device UUID: 93d3f76c221e46b4a17176ffa06dfc89
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/KH-1.27PH180-2X5P-L7.2-SMT/5516455.html
• Product URL: https://item.szlcsc.com/datasheet/KH-1.27PH180-2X5P-L7.2-SMT/5516455.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: SWD, JTAG, UART, programming, boundary-scan, bring-up, and production-test access headers
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category debug-header, interfaces gpio, package SMD,P=1.27mm, and EasyEDA footprint UUID 356cccd286c24df5b946235eab56a4f4.
