2207-P10MM

Identity

• Manufacturer: XHXDZ(兴华鑫)
• Model / MPN: 2207-P10MM
• LCSC: C49246969
• Category: buzzer

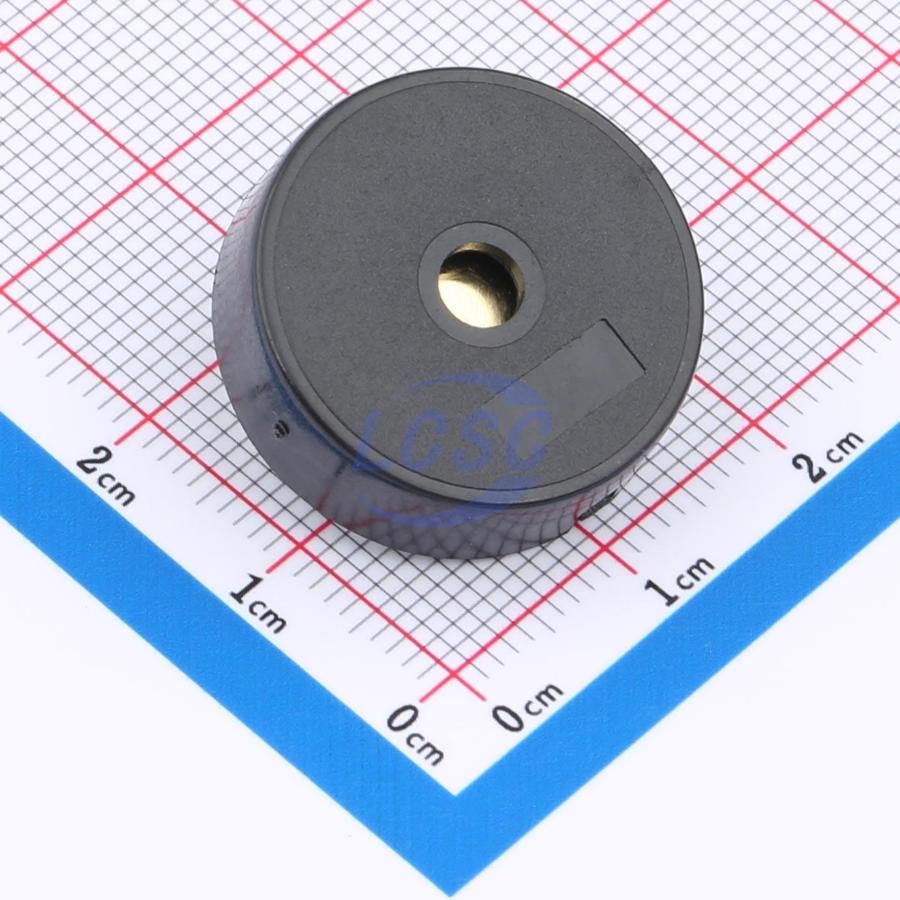

• Description: 2207-P10MM passive piezoelectric buzzer; 4kHz; 5V rating; 10mA; SPL 90dB; diameter 22mm; height 7mm; -20°C~+7
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface
• pwm: interface

Package And Footprint

• Package / footprint name: 插件,D22xL7mm
• Pin count: Unknown
• EasyEDA symbol UUID: 851c382c960d44d3ba4f98b0cf5d049d
• EasyEDA footprint UUID: 619994dbb5fe474bb38a3a880ad4b89a
• EasyEDA device UUID: 06634ded642a4388b157523e83105419
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common connectors, power, UI, and protection seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/2207-P10MM/51674938.html
• Product URL: https://item.szlcsc.com/datasheet/2207-P10MM/51674938.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category buzzer, interfaces gpio, pwm, package 插件,D22xL7mm, and EasyEDA footprint UUID 619994dbb5fe474bb38a3a880ad4b89a.

Search Keywords

seed:common-connectors-power-ui, source:easyeda-bridge, iot, common-pcb, piezo, buzzer, audio, alert, through-hole, externally-driven, d22xl7mm, jlc-extended, gpio, pwm, jlc_extended, jlc-note:easyeda-jlc-verified-common-connectors-power-ui-and-protection-seed
