HX-6x6x7.3-CJ FT through hole

Identity

• Manufacturer: hanxia(韩下)
• Model / MPN: HX-6x6x7.3-CJ FT through hole
• LCSC: C49234151
• Category: tactile-switch

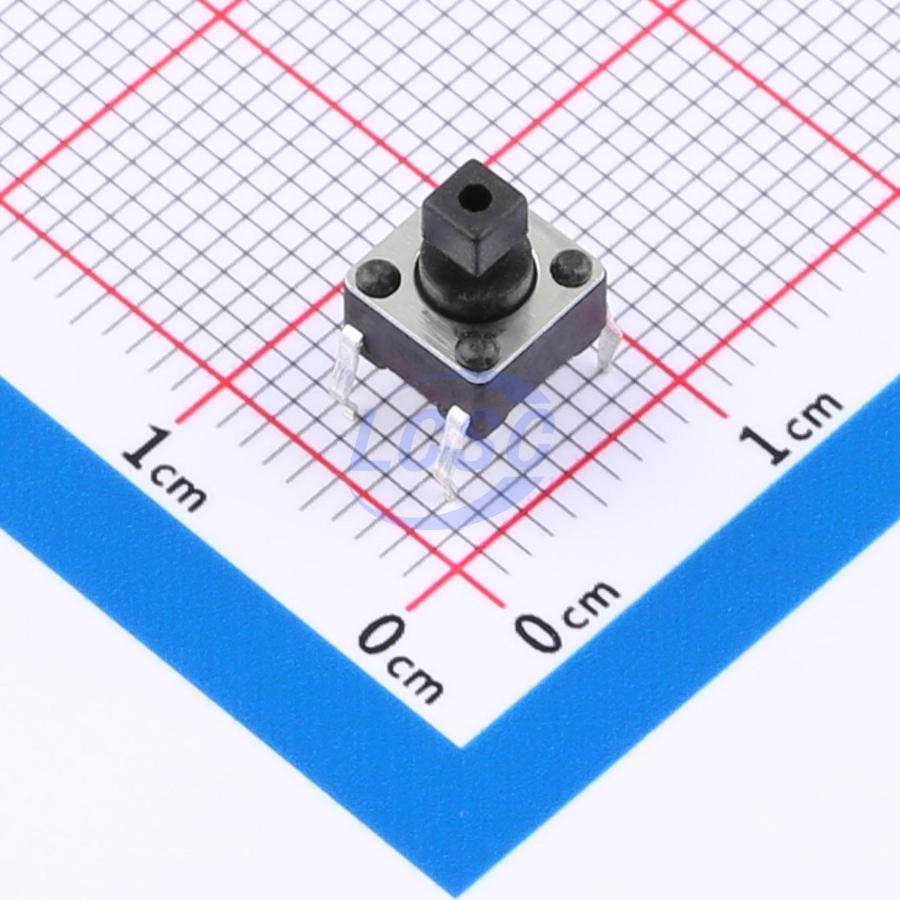

• Description: HX-6x6x7.3-CJ FT through-hole 667.3mm square-head tactile switch; SPST; 2.5N; 50mA; 250V; black; without bracket
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: 插件,6x6mm
• Pin count: Unknown
• EasyEDA symbol UUID: b6332a24dfd344d58222a5fba6798ac7
• EasyEDA footprint UUID: 39de058318f442b7994ff7a3d4ae66da
• EasyEDA device UUID: 7ea3d9ea32ff4bc696089b559c7bcab9
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: 250V
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common connector, HMI, and mechanical interface seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/HX-6x6x7.3-CJ%2520FT%2520through%2520hole/51650212.html
• Product URL: https://item.szlcsc.com/datasheet/HX-6x6x7.3-CJ%2520FT%2520through%2520hole/51650212.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category tactile-switch, interfaces gpio, package 插件,6x6mm, and EasyEDA footprint UUID 39de058318f442b7994ff7a3d4ae66da.
