MST-12D18G2 SMD Slide Switch

Identity

Manufacturer: SHOU HAN(首韩)
Model / MPN: MST-12D18G2 SMD Slide Switch
LCSC: C49023765
Category: slide-switch

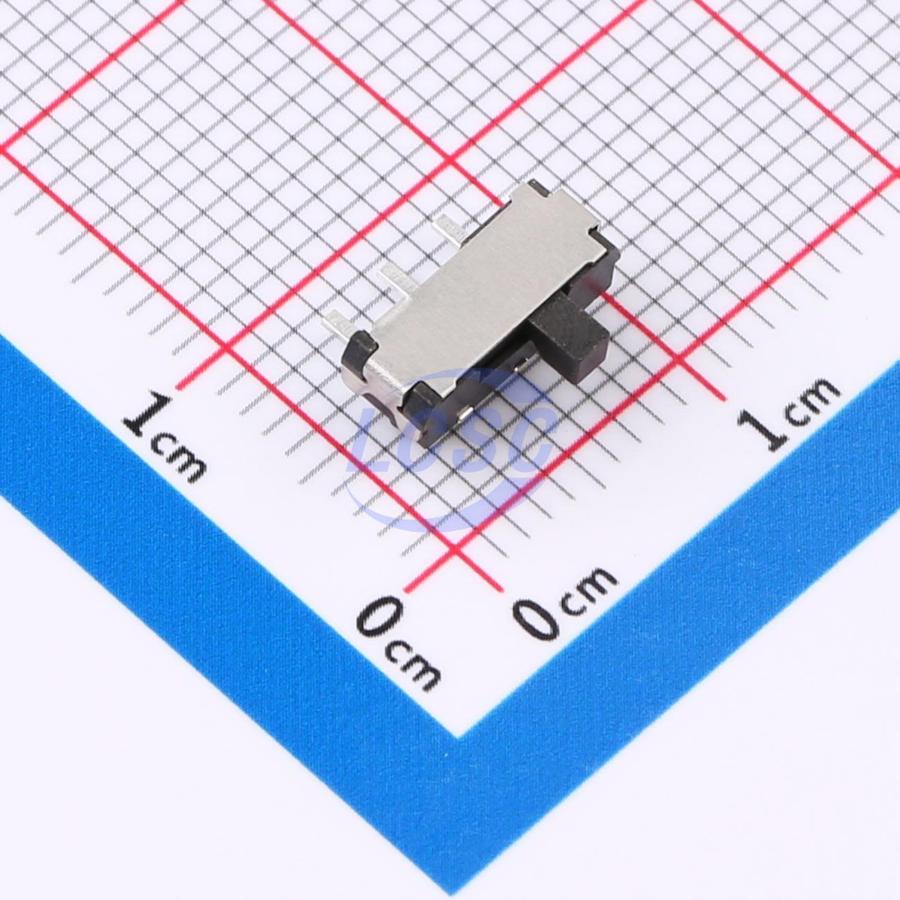

Description: MST-12D18G2 horizontal SMD SPDT slide switch with post, 12V, 100mA, 9.1mm tab, 3.5mm width, 5.5mm height, 10,000 Cycles.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface

Package And Footprint

Package / footprint name: SMD
Pin count: Unknown
EasyEDA symbol UUID: 862ebb7e7dd5448e95ee6f3deddaff76
EasyEDA footprint UUID: 6ecf222ae6234408a6bbe781c43721c7
EasyEDA device UUID: 687978cf7d7c4affb40f3d2f42f82440
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: 12V
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connector, HMI, and mechanical interface seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/MST-12D18G2%2520SMD%2520Slide%2520Switch/51384140.html
Product URL: https://item.szlcsc.com/datasheet/MST-12D18G2%2520SMD%2520Slide%2520Switch/51384140.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category slide-switch, interfaces gpio, package SMD, and EasyEDA footprint UUID 6ecf222ae6234408a6bbe781c43721c7.
