ADS1220IPWR

Identity

Manufacturer: TI(德州仪器)
Model / MPN: ADS1220IPWR
LCSC: C48263
Category: precision-adc
Description: 24-bit ADC with integrated features, SPI, 2.3V~~5.5V, 2kHz, 2;4 channels, differential input, 6LSB INL, -40°C~~+125°C.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

spi: interface

Package And Footprint

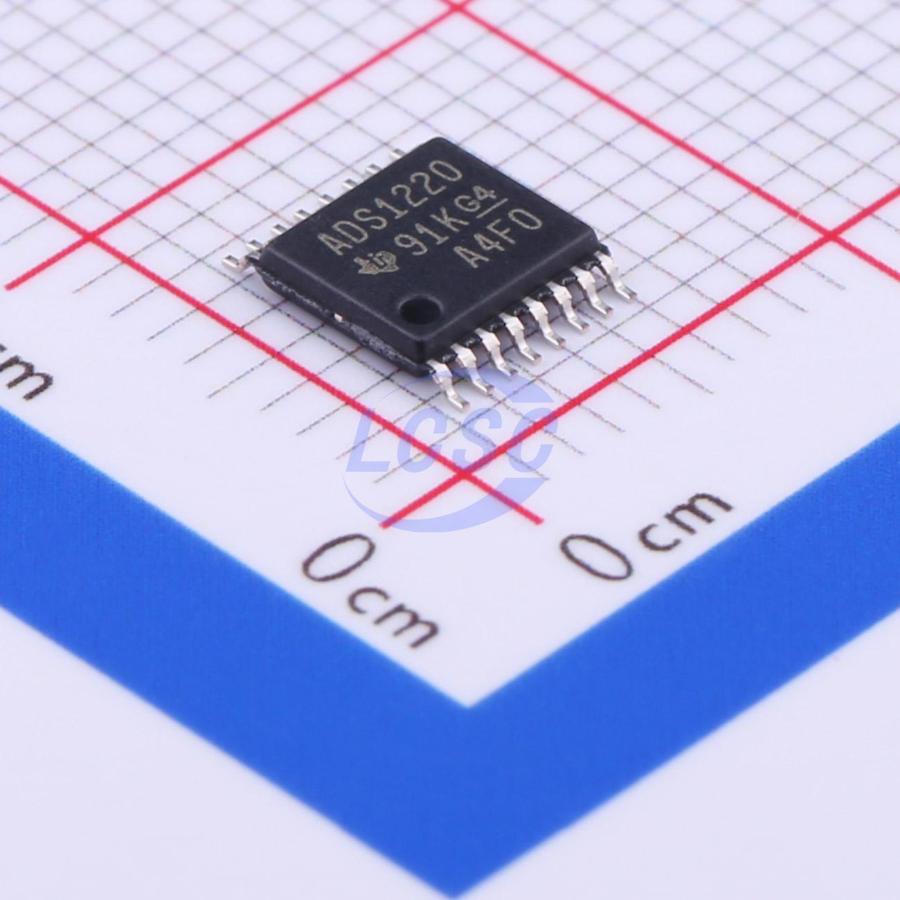

Package / footprint name: TSSOP-16
Pin count: 16
EasyEDA symbol UUID: bf55a1fcdf104090acc3bdfc51bf0cab
EasyEDA footprint UUID: a11950ceac50438289ff689a35fd9574
EasyEDA device UUID: 427e54ecec8046cf97c906eafb46207f
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 2.3V~5.5V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified industrial/machine analog I/O signal-conditioning seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://www.ti.com/cn/lit/gpn/ads1220
Product URL: https://www.ti.com/cn/lit/gpn/ads1220
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category precision-adc, interfaces spi, package TSSOP-16, and EasyEDA footprint UUID a11950ceac50438289ff689a35fd9574.
