TS-1109S-B-B

Identity

• Manufacturer: XKB Connectivity(中国星坤)
• Model / MPN: TS-1109S-B-B
• LCSC: C480315
• Category: tactile-switch

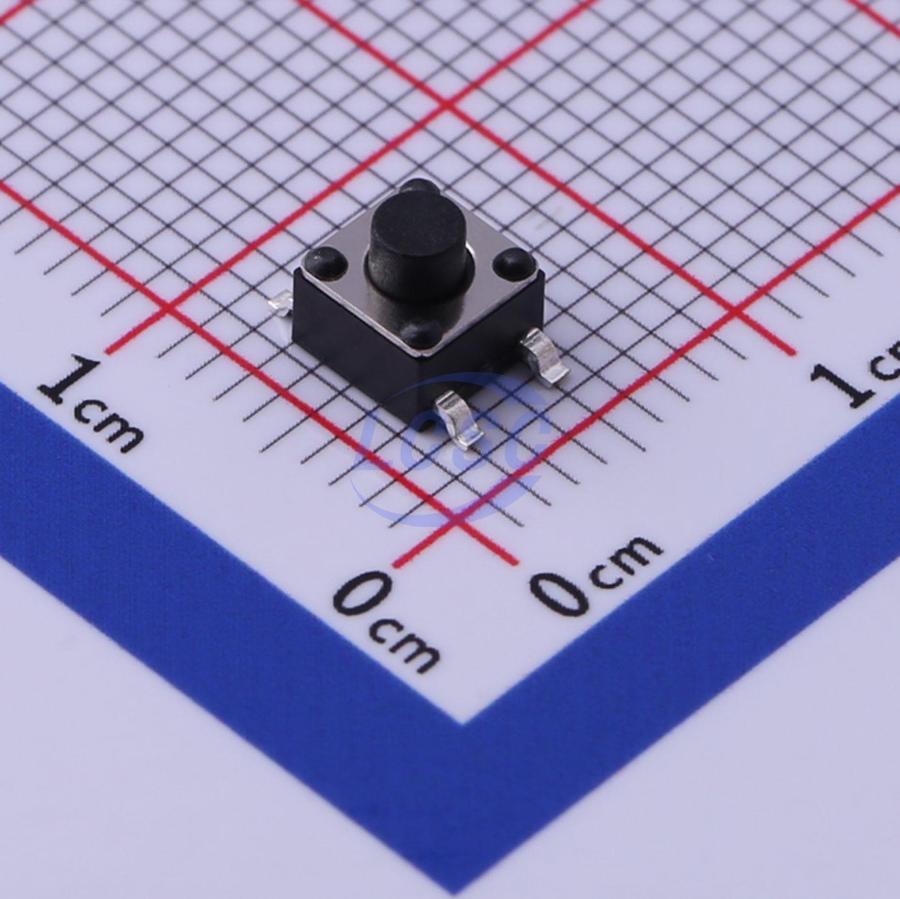

• Description: TS-1109S-B-B 4.54.54.3mm vertical tactile switch; SPST; 160gf; 50mA; 12V DC; black cap; without bracket
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: SMD
• Pin count: Unknown
• EasyEDA symbol UUID: a52f63e1ce4743a9bfa3ed4d8234f2d2
• EasyEDA footprint UUID: 4d9851a335ff4293a64b57a1771cfaad
• EasyEDA device UUID: de53f6f252ae42178e2aebba18535b1a
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common IoT basics seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://atta.szlcsc.com/upload/public/pdf/source/20200302/C480317_296FA2B7BED03300800BB0C3195AF09D.pdf
• Product URL: https://atta.szlcsc.com/upload/public/pdf/source/20200302/C480317_296FA2B7BED03300800BB0C3195AF09D.pdf
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category tactile-switch, interfaces gpio, package SMD, and EasyEDA footprint UUID 4d9851a335ff4293a64b57a1771cfaad.

Search Keywords

seed:common-iot-basics, source:easyeda-bridge, iot, common-pcb, button, reset, boot, tactile, smd, tactile-switch, jlc-extended, gpio, jlc_extended, jlc-note:easyeda-jlc-verified-common-iot-basics-seed
