KF128-2.54-4P

Identity

• Manufacturer: KEFA(科发)
• Model / MPN: KF128-2.54-4P
• LCSC: C474922
• Category: pluggable-terminal

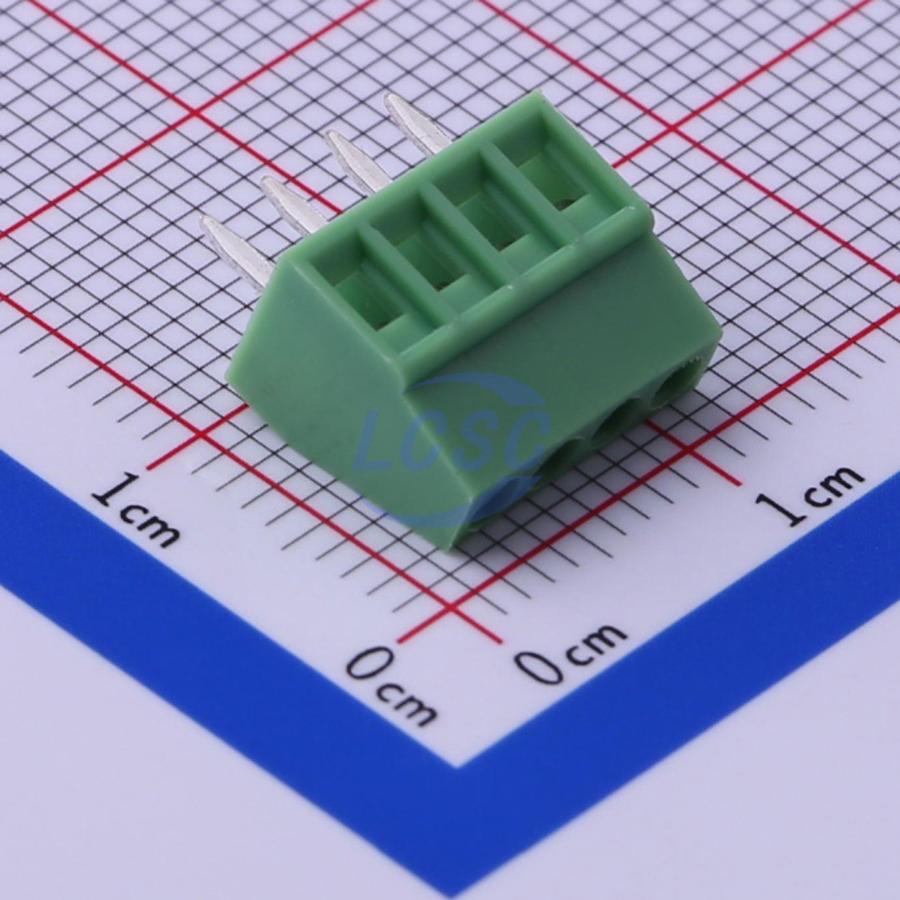

• Description: Green 1x4P through-hole pluggable terminal, 2.54mm pitch, 8A, 130V max, 18~26 AWG, 1 mm2 wire.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: 插件,P=2.54mm
• Pin count: Unknown
• EasyEDA symbol UUID: 3f7e6c1953004632bb8b64243fe4ee57
• EasyEDA footprint UUID: 40b489a72b674b9ab4bf2ee0f7bf61b2
• EasyEDA device UUID: cddab5abf8cb44f18f2c834e683fd55e
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common board IO, power entry, and indicator expansion seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/KF128-2.54-4P/481540.html
• Product URL: https://item.szlcsc.com/datasheet/KF128-2.54-4P/481540.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category pluggable-terminal, interfaces none captured, package 插件,P=2.54mm, and EasyEDA footprint UUID 40b489a72b674b9ab4bf2ee0f7bf61b2.
