KF301R-5.0-3P

Identity

• Manufacturer: KEFA(科发)
• Model / MPN: KF301R-5.0-3P
• LCSC: C474884
• Category: screw-terminal

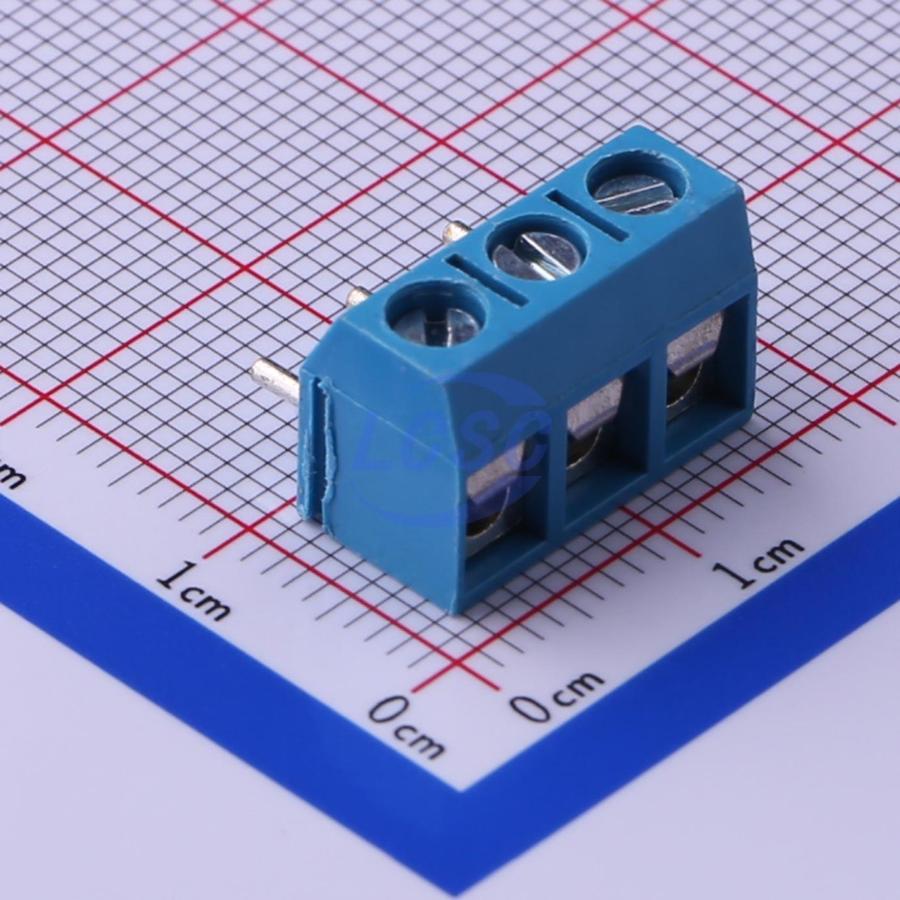

• Description: Blue 1x3P right-angle screw terminal, 5mm pitch, 17A, 250V max, 14~22 AWG, 1.5 mm2 wire.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: 弯插,P=5mm
• Pin count: Unknown
• EasyEDA symbol UUID: a273d8c03b644de38df65b9ada24032e
• EasyEDA footprint UUID: 40cfa0b918d14e6a809366d697723dfc
• EasyEDA device UUID: 35a3450001064893a734d01aee5dad72
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common board IO, power entry, and indicator expansion seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/KF301R-5.0-3P/481502.html
• Product URL: https://item.szlcsc.com/datasheet/KF301R-5.0-3P/481502.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category screw-terminal, interfaces none captured, package 弯插,P=5mm, and EasyEDA footprint UUID 40cfa0b918d14e6a809366d697723dfc.
