KF301R-5.0-2P

Identity

Manufacturer: KEFA(科发)
Model / MPN: KF301R-5.0-2P
LCSC: C474883
Category: screw-terminal

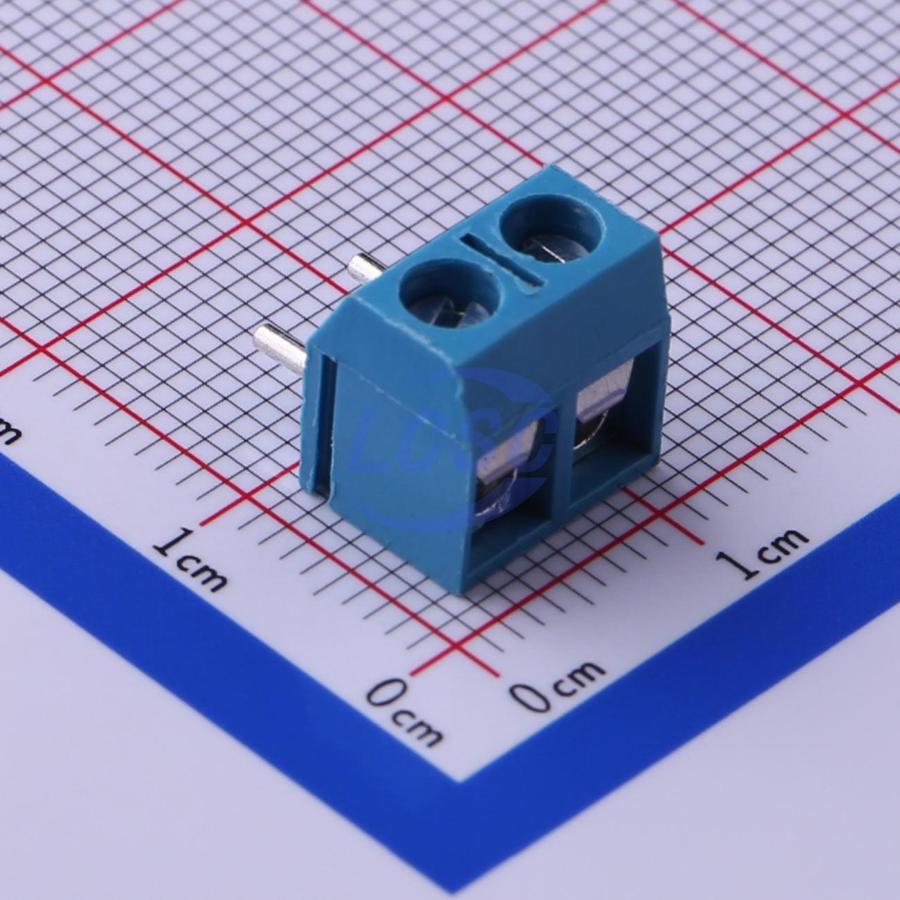

Description: Blue 1x2P right-angle screw terminal, 5mm pitch, 17A, 250V max, 14~22 AWG, 1.5 mm2 wire.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

field-wiring: interface

Package And Footprint

Package / footprint name: 弯插,P=5mm
Pin count: Unknown
EasyEDA symbol UUID: 60df778802f445b6a5f7f8afc5b9eb79
EasyEDA footprint UUID: dc72a9ec26b6486bbf6ccb8e689ce196
EasyEDA device UUID: 1a7d934397f14d56a8b7eed46cd0ab4a
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common debug headers, FPC/mezzanine connectors, field wiring terminals, and fuse seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/KF301R-5.0-2P/481501.html
Product URL: https://item.szlcsc.com/datasheet/KF301R-5.0-2P/481501.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category screw-terminal, interfaces field-wiring, package 弯插,P=5mm, and EasyEDA footprint UUID dc72a9ec26b6486bbf6ccb8e689ce196.
