KF301-5.0-3P

Identity

• Manufacturer: KEFA(科发)
• Model / MPN: KF301-5.0-3P
• LCSC: C474882
• Category: screw-terminal

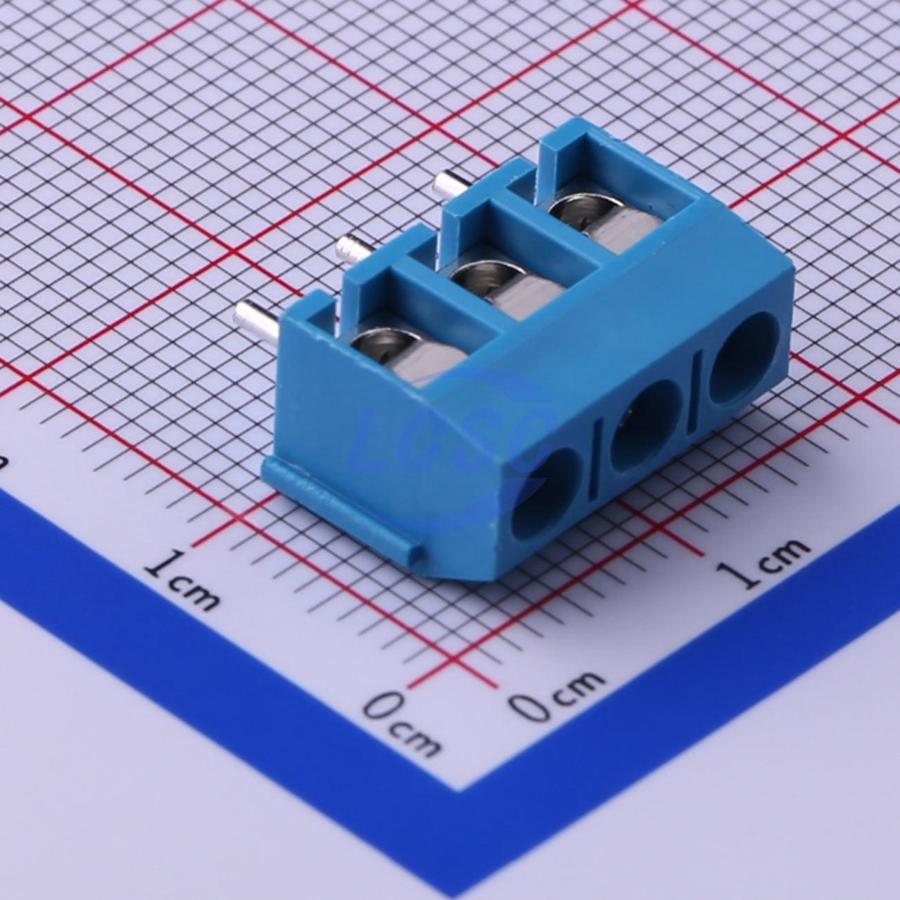

• Description: Blue 1x3P through-hole screw terminal, 5mm pitch, 17A, 250V max, 14~22 AWG, 1.5 mm2 wire.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: 插件,P=5mm
• Pin count: Unknown
• EasyEDA symbol UUID: 0ba94d5567d64035a5fadc5e0e60848b
• EasyEDA footprint UUID: 24ae2e94a51342f79df3b75f05dc26e3
• EasyEDA device UUID: 629e1ce12aff4686affcbb22439c06da
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common board IO, power entry, and indicator expansion seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/KF301-5.0-3P/481500.html
• Product URL: https://item.szlcsc.com/datasheet/KF301-5.0-3P/481500.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category screw-terminal, interfaces none captured, package 插件,P=5mm, and EasyEDA footprint UUID 24ae2e94a51342f79df3b75f05dc26e3.
