LTC4412HVIS6#TRPBF

Identity

• Manufacturer: ADI(亚德诺)
• Model / MPN: LTC4412HVIS6#TRPBF
• LCSC: C462626
• Category: ideal-diode-controller
• Description: 36V low-loss power path controller, High Side Switch, 2.5V36V, 1 channel, Active High, -40°C+125°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

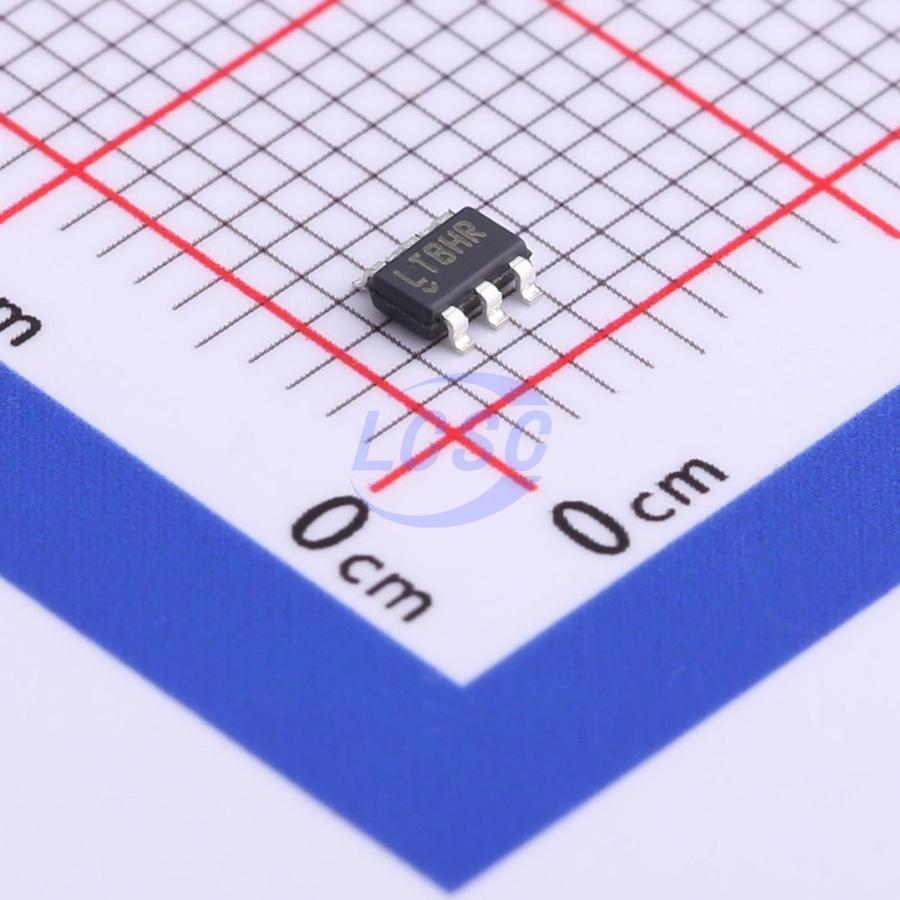

• Package / footprint name: TSOT-23-6
• Pin count: Unknown
• EasyEDA symbol UUID: 18c4dabc1c814eacbfddadd85ac3d80c
• EasyEDA footprint UUID: 60b14e8d47fb45109dfde245fc9cee41
• EasyEDA device UUID: 0c843efb744443ca9a73317dda793686
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 2.5V~36V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common power distribution, protection, and sensing seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/LTC4412HVIS6%2523TRPBF/467352.html
• Product URL: https://item.szlcsc.com/datasheet/LTC4412HVIS6%2523TRPBF/467352.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reverse-polarity protection, low-loss ORing, battery/adapter power-path selection, and backfeed blocking
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category ideal-diode-controller, interfaces none captured, package TSOT-23-6, and EasyEDA footprint UUID 60b14e8d47fb45109dfde245fc9cee41.
