HX PM2.54-1x4P WT

Identity

Manufacturer: hanxia(韩下)
Model / MPN: HX PM2.54-1x4P WT
LCSC: C46061768
Category: pin-header

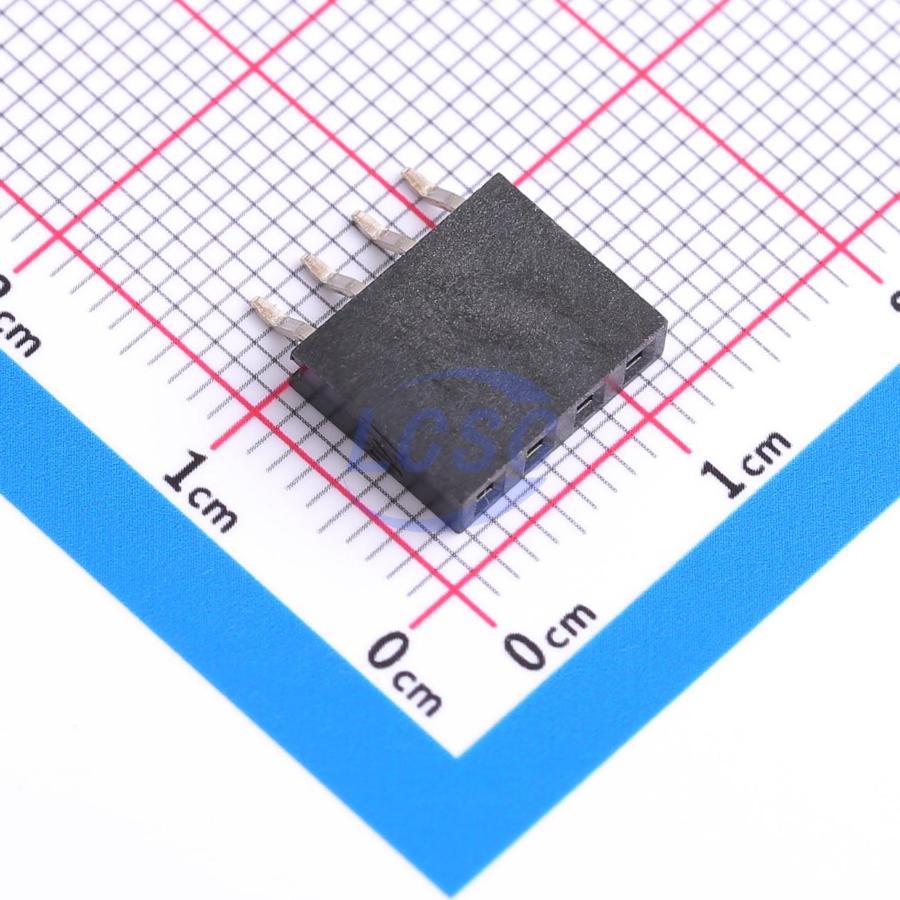

Description: HX PM2.54-1x4P WT matching HX PZ2.54-1x4P 1x4P 2.54mm right-angle SMT socket header; square holes; 4P; 3A; 1kV; insulator 8.5mm
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

uart: interface
gpio: interface

Package And Footprint

Package / footprint name: SMD,P=2.54mm,卧贴
Pin count: Unknown
EasyEDA symbol UUID: 5959af1cf6c640979668d3a04fa05044
EasyEDA footprint UUID: 006cb9dd267f4ed7b89f05add8d4f1c2
EasyEDA device UUID: bd0b2dd8efa24848909c44aa847b8ed7
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connectors, power, UI, and protection seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/HX%2520PM2.54-1x4P%2520WT/48170628.html
Product URL: https://item.szlcsc.com/datasheet/HX%2520PM2.54-1x4P%2520WT/48170628.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category pin-header, interfaces uart, gpio, package SMD,P=2.54mm,卧贴, and EasyEDA footprint UUID 006cb9dd267f4ed7b89f05add8d4f1c2.
