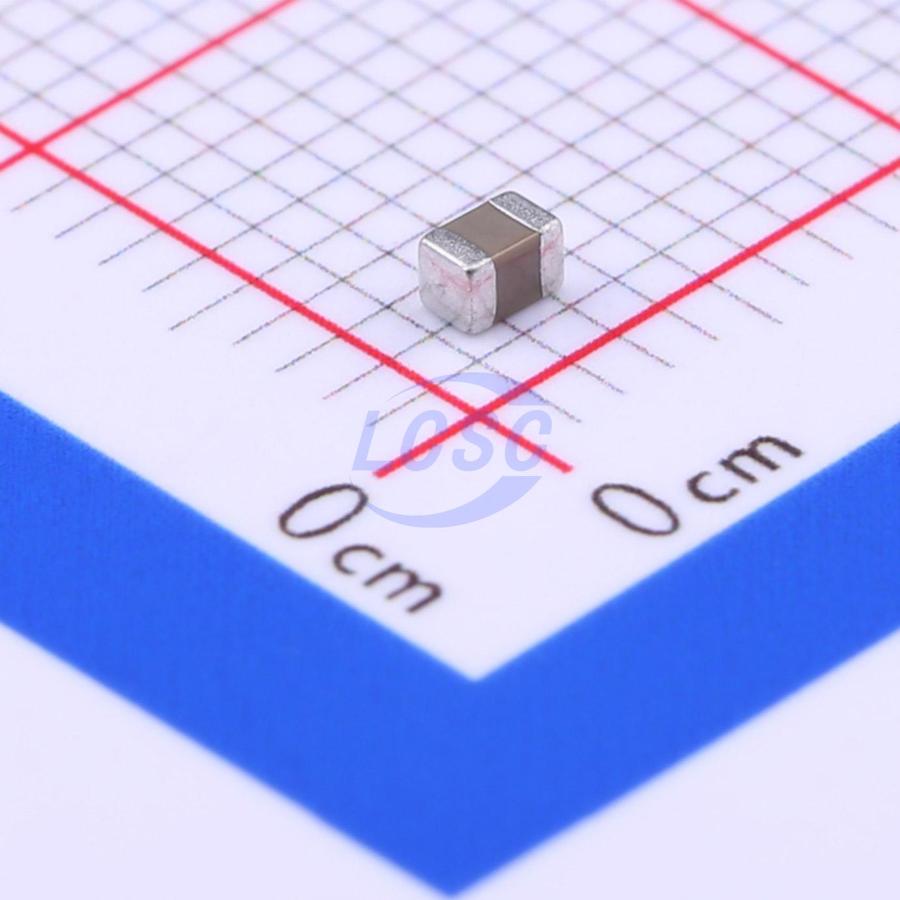

CL21A226MAQNNNE

Identity

Manufacturer: SAMSUNG(三星)
Model / MPN: CL21A226MAQNNNE
LCSC: C45783
Category: capacitor
Description: 22uF ±20% 25V 22uF ±20% 25V Capacitance:22uF Tolerance:±20% Tolerance:±20% Voltage Rating:25V Temperature Coefficient:X5R
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 0805
Pin count: Unknown
EasyEDA symbol UUID: 3cbc7e12fc0b479f9f2e75fe63cee5c7
EasyEDA footprint UUID: 9376364c15854e01b3fabcf032810a22
EasyEDA device UUID: 9583d53cf848486a9d523fcaf153a729
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: 25V
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Basic Part
JLC note / assembly basis: EasyEDA/JLC verified common resistor and capacitor value seed
Assembly status: jlc_basic
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/CL21A226MAQNNNE/46786.html
Product URL: https://item.szlcsc.com/datasheet/CL21A226MAQNNNE/46786.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category capacitor, interfaces none captured, package 0805, and EasyEDA footprint UUID 9376364c15854e01b3fabcf032810a22.
