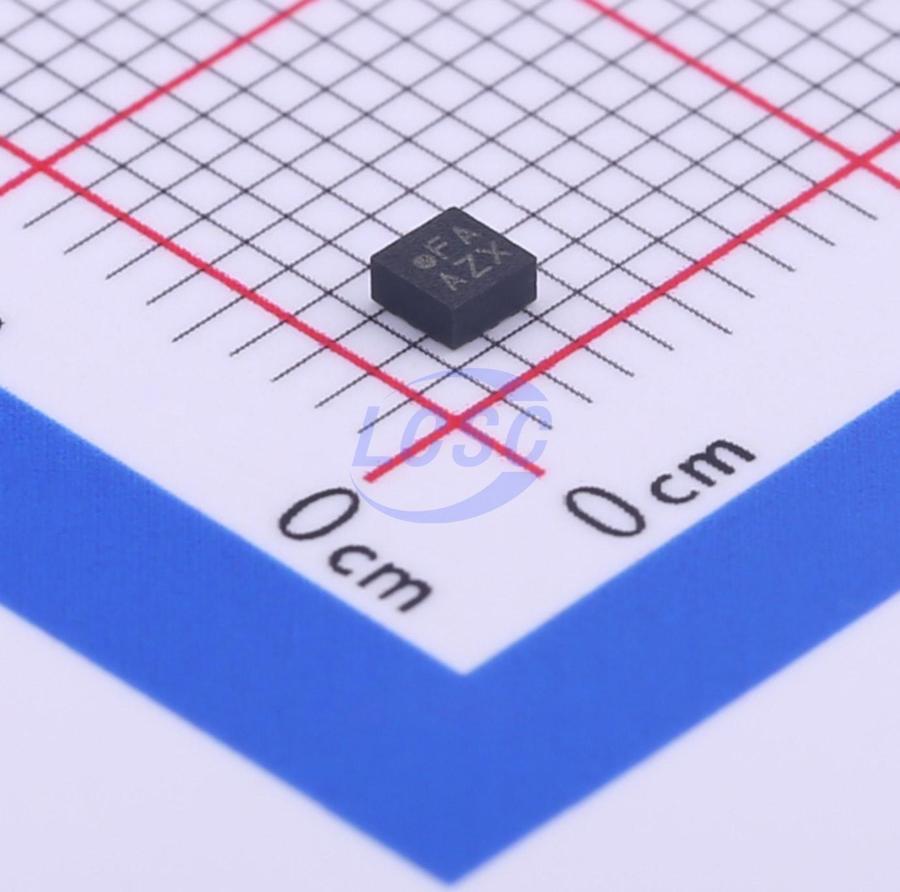

BMA400

Identity

Manufacturer: Bosch(博世)
Model / MPN: BMA400
LCSC: C437655
Category: accelerometer
Description: 3-axis ultra-low-power accelerometer, 1.71V~3.6V, I2C/SPI, X,Y,Z, range ±16g, Sensor Type:Accelerometer, Output Bits:12bit
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

i2c: interface
spi: interface

Package And Footprint

Package / footprint name: LGA-12(2x2)
Pin count: 12
EasyEDA symbol UUID: bbdefe9bf4c64973b0ef722e0bc210bc
EasyEDA footprint UUID: 07ded5f3f050434e99f4c9b3688702d4
EasyEDA device UUID: b830e8c6effb4bb9906a1fd9d9a18f5b
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: EasyEDA property: 160nA.
Supply rails: EasyEDA property: 1.71V~3.6V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/BMA400/436979.html
Product URL: https://item.szlcsc.com/datasheet/BMA400/436979.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: motion wake, tilt/orientation, vibration monitoring, impact detection, tap detection, and low-power activity sensing
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category accelerometer, interfaces i2c, spi, package LGA-12(2x2), and EasyEDA footprint UUID 07ded5f3f050434e99f4c9b3688702d4.
