HX711

Identity

Manufacturer: AVIA(海芯科技)
Model / MPN: HX711
LCSC: C43656
Category: load-cell-adc
Description: 24bit ADC for weigh scales, 2.6V~~5.5V, Serial port, 2 channels, 10Hz, differential input, -40°C~~+85°C
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface

Package And Footprint

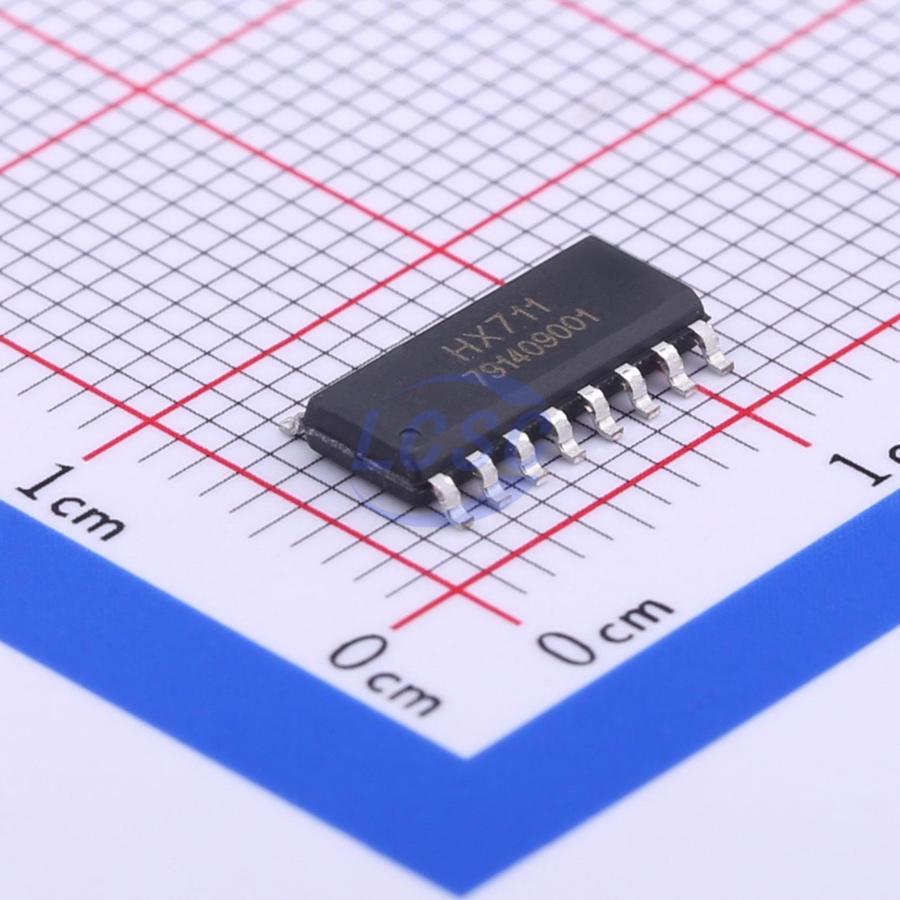

Package / footprint name: SOP-16
Pin count: 16
EasyEDA symbol UUID: 172c88de4f614a6cb5b49535ee2a332a
EasyEDA footprint UUID: e52e644bbb3548988fcc9af5d7d48159
EasyEDA device UUID: bff98b9a13e0451f9f613eddfd1ec2c1
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 2.6V~5.5V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common IoT sensors, storage, and communications seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/HX711/44649.html
Product URL: https://item.szlcsc.com/datasheet/HX711/44649.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category load-cell-adc, interfaces gpio, package SOP-16, and EasyEDA footprint UUID e52e644bbb3548988fcc9af5d7d48159.
