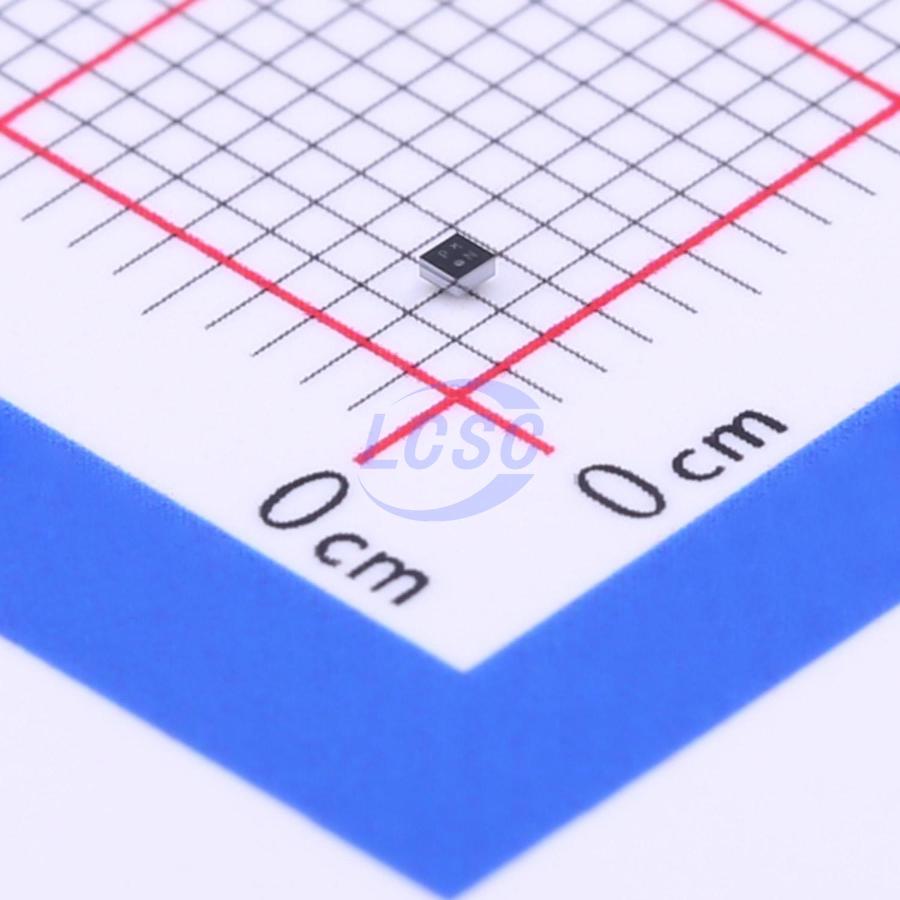

MMC5603NJ

Identity

• Manufacturer: MEMSIC(美新)
• Model / MPN: MMC5603NJ
• LCSC: C404328
• Category: magnetometer
• Description: 3-axis magnetic sensor, I2C, 1.62V~3.6V supply, ±3mT X/Y/Z range, 20bit output, 3.4mA/1.3mA/2.4mA supply current.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

• Package / footprint name: WLP-4(0.8x0.8)
• Pin count: Unknown
• EasyEDA symbol UUID: a8e903c19a254bf58d0636a09005fcb2
• EasyEDA footprint UUID: 5680073ce0e248bba1a55b4bbfdb8944
• EasyEDA device UUID: 0350ab7f02e1401281170c99a80d079e
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: EasyEDA property: 3.4mA；1.3mA；2.4mA；750uA.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 1.62V~3.6V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/MMC5603NJ/391847.html
• Product URL: https://item.szlcsc.com/datasheet/MMC5603NJ/391847.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: compass heading, magnetic-field sensing, orientation fusion, and proximity to magnets or ferrous objects
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category magnetometer, interfaces i2c, package WLP-4(0.8x0.8), and EasyEDA footprint UUID 5680073ce0e248bba1a55b4bbfdb8944.

Search Keywords

seed:common-sensors-environment-motion, source:easyeda-bridge, iot, common-pcb, sensors, environment, motion, mmc5603, magnetometer, compass, high-resolution, i2c, wlp-4-0.8x0.8, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-common-environment-motion-light-proximity-and-temperature-sensor-seed
