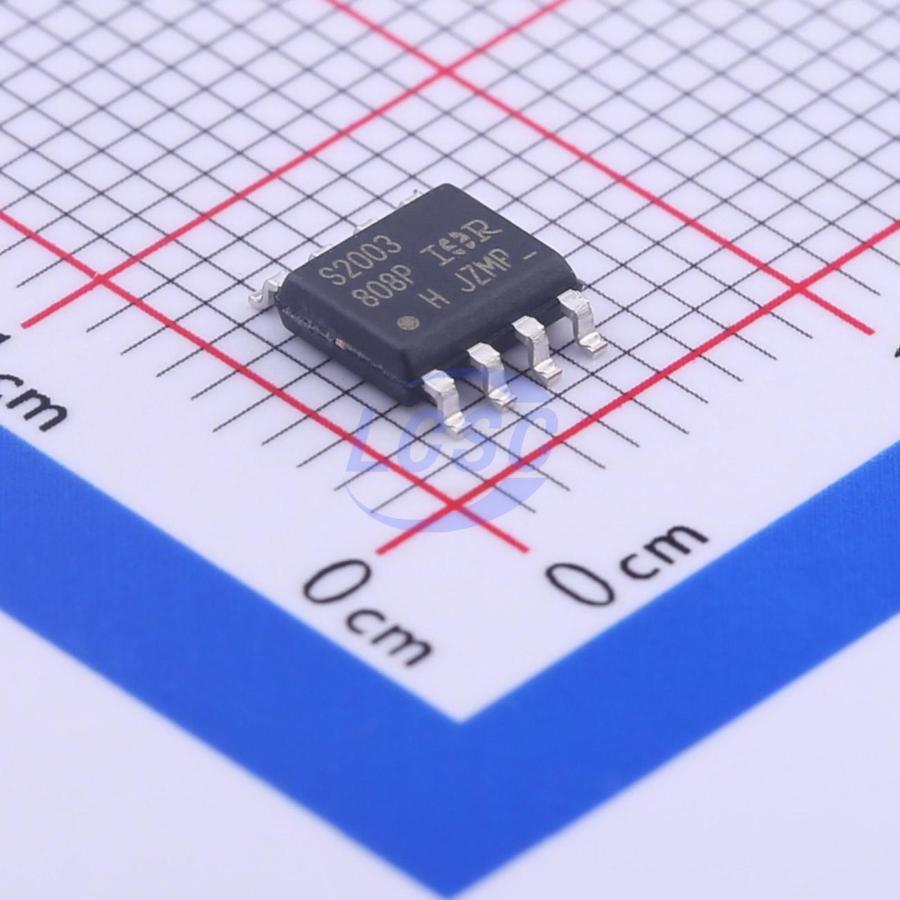

IRS2003STRPBF

Identity

Manufacturer: Infineon(英飞凌)
Model / MPN: IRS2003STRPBF
LCSC: C40009
Category: half-bridge-gate-driver
Description: IRS half-bridge rectifier driver, 10V~20V, IGBT/MOSFET, 2 drivers, IOL:600mA, IOH:290mA, rise 70ns, fall 35ns, tpLH:680ns
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface
pwm: interface

Package And Footprint

Package / footprint name: SOP-8
Pin count: 8
EasyEDA symbol UUID: 4e31e9afe7304646a7e0f0bebfbbdc5e
EasyEDA footprint UUID: 174bfc4e122a41b38a4ff8ccea33a462
EasyEDA device UUID: ec5d7bd7bd0b4959b0799aa0ab5db7da
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 10V~20V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/IRS2003STRPBF/40991.html
Product URL: https://item.szlcsc.com/datasheet/IRS2003STRPBF/40991.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.
