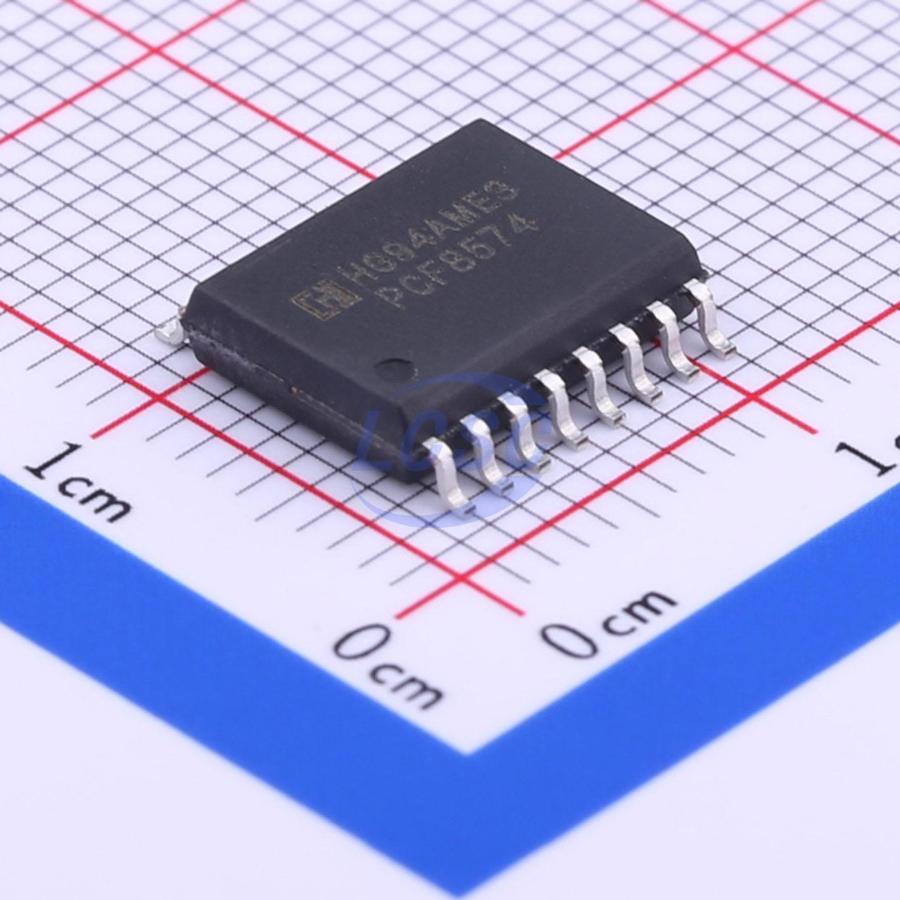

PCF8574T

Identity

• Manufacturer: HGSEMI(华冠)
• Model / MPN: PCF8574T
• LCSC: C398075
• Category: io-expander
• Description: I2C I/O expander, 2.5V6V, 8 I/O, interrupt output, Clock Frequency:100kHz, -40°C+85°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface
• gpio: interface

Package And Footprint

• Package / footprint name: SOP-16-300mil
• Pin count: 16
• EasyEDA symbol UUID: e83c3525abda46d5bd0ecd482e821a22
• EasyEDA footprint UUID: 987ee5752d7049f9bbdb0c15558bd123
• EasyEDA device UUID: c3da965573bd49199786a9ba556f27f5
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 2.5V~6V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common IoT basics seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://atta.szlcsc.com/upload/public/pdf/source/20190611/C398075_1925312D8618E19C6137781D5B71A3CA.pdf
• Product URL: https://atta.szlcsc.com/upload/public/pdf/source/20190611/C398075_1925312D8618E19C6137781D5B71A3CA.pdf
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category io-expander, interfaces i2c, gpio, package SOP-16-300mil, and EasyEDA footprint UUID 987ee5752d7049f9bbdb0c15558bd123.
