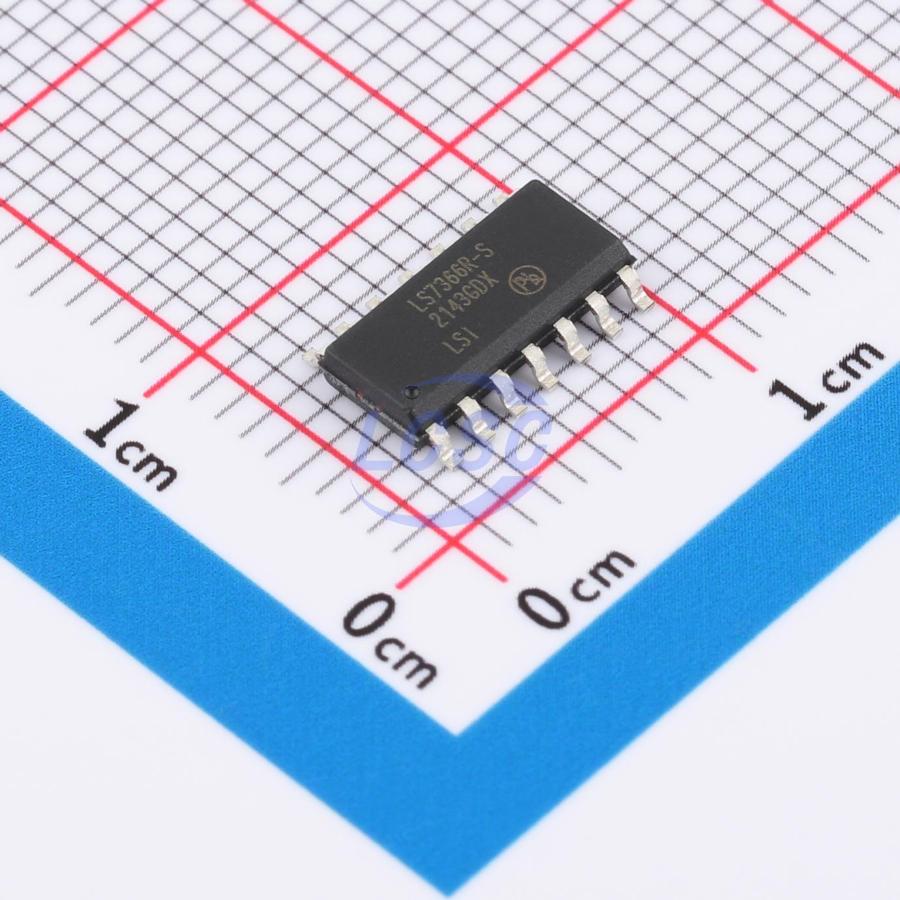

LS7366R-S

Identity

Manufacturer: LSI/CSI
Model / MPN: LS7366R-S
LCSC: C3827808
Category: quadrature-encoder-counter
Description: 32-bit quadrature counter with serial interface, 3V~5.5V supply, divide-by-2 logic, up/down counter, 1 element, 40MHz count rate.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

spi: interface

Package And Footprint

Package / footprint name: SOIC-14
Pin count: 14
EasyEDA symbol UUID: 02c0bfde85744ab8b70f07f4dd2cdc8b
EasyEDA footprint UUID: febd3113672547f991b71b6869310eaa
EasyEDA device UUID: 40c4dbbb10e24a3c9719c31d749b97a7
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 3V~5.5V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified motor/encoder/BLDC-driver seed to fill gaps beyond the existing brushed-DC and stepper drivers
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/LS7366R-S/4396282.html
Product URL: https://item.szlcsc.com/datasheet/LS7366R-S/4396282.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category quadrature-encoder-counter, interfaces spi, package SOIC-14, and EasyEDA footprint UUID febd3113672547f991b71b6869310eaa.
