EC11E15244G1

Identity

Manufacturer: ALPSALPINE(阿尔卑斯阿尔派)
Model / MPN: EC11E15244G1
LCSC: C370970
Category: rotary-encoder

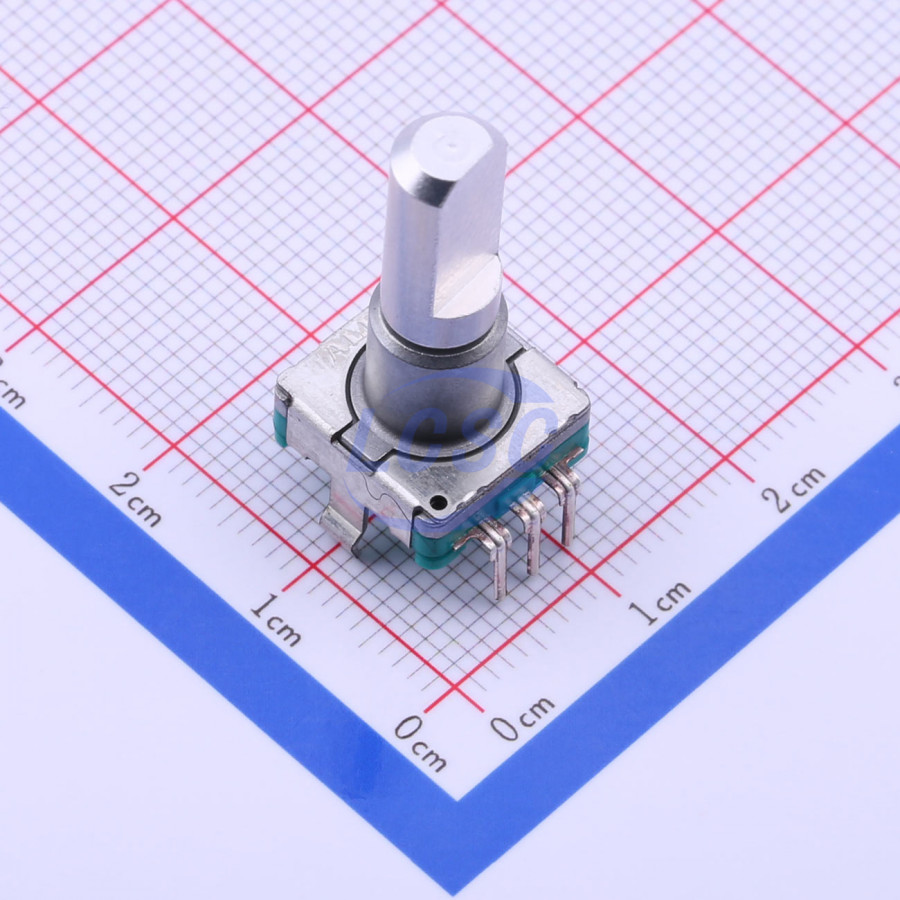

Description: Encoder
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface

Package And Footprint

Package / footprint name: 插件
Pin count: Unknown
EasyEDA symbol UUID: 2c18f1e8a9ad4dc2b3ac80a73faa89e5
EasyEDA footprint UUID: 86d1237b41a84ddbbea5209a5d6876ed
EasyEDA device UUID: 7a96651919204f53acd1193160aeb885
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connector, HMI, and mechanical interface seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/EC11E15244G1/344654.html
Product URL: https://item.szlcsc.com/datasheet/EC11E15244G1/344654.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category rotary-encoder, interfaces gpio, package 插件, and EasyEDA footprint UUID 86d1237b41a84ddbbea5209a5d6876ed.
