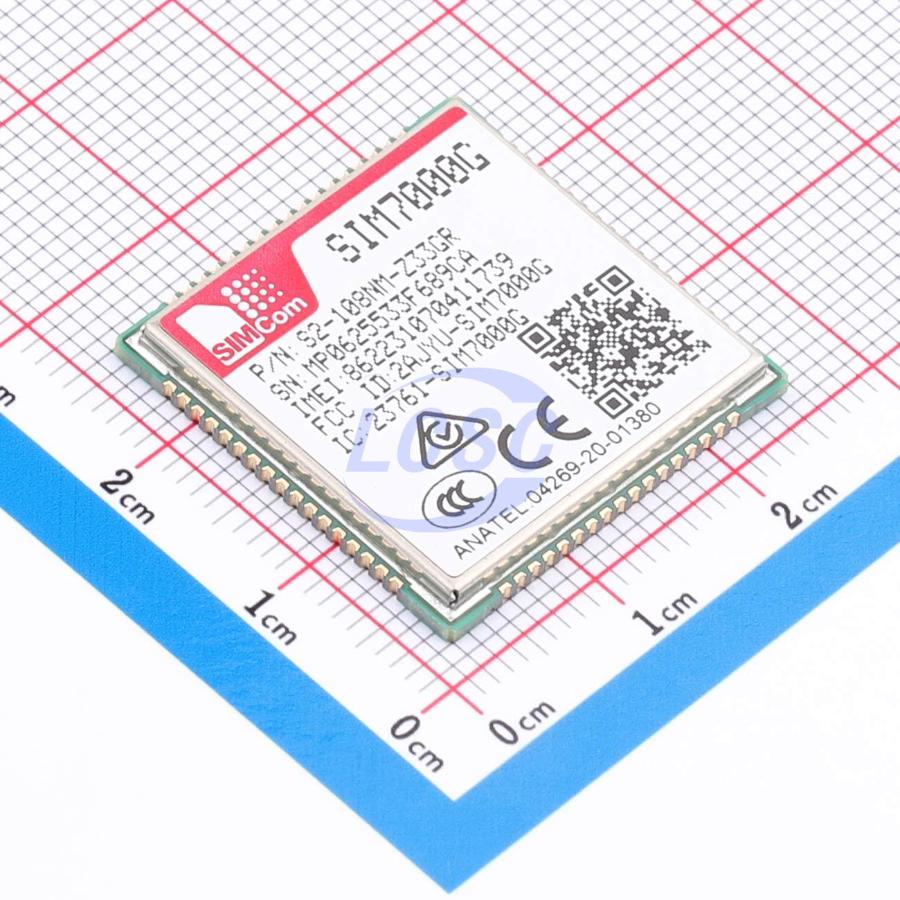

SIM7000G

Identity

• Manufacturer: SIMCOM(芯讯通无线科技)
• Model / MPN: SIM7000G
• LCSC: C369408
• Category: cellular-module
• Description: LPWA module supporting Cat-M/Cat-NB/GPRS/EDGE, PCM/I2C/UART/USB/ADC/SIM card, 3V~4.3V supply, 9uA current.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• uart: interface
• usb: interface
• i2c: interface
• spi: interface
• adc: interface
• sim: interface

Package And Footprint

• Package / footprint name: SMD,24x24mm
• Pin count: Unknown
• EasyEDA symbol UUID: cde8d41b01c9455f83162342f0fe8d3e
• EasyEDA footprint UUID: e7f09bd3bb2e43cfa8f7f9d0c78712ac
• EasyEDA device UUID: a74064fab624487fa53e5674173596a9
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 3V~4.3V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common connectivity, positioning, and RF interface seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/SIM7000G/343229.html
• Product URL: https://item.szlcsc.com/datasheet/SIM7000G/343229.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category cellular-module, interfaces uart, usb, i2c, spi, adc, sim, package SMD,24x24mm, and EasyEDA footprint UUID e7f09bd3bb2e43cfa8f7f9d0c78712ac.
