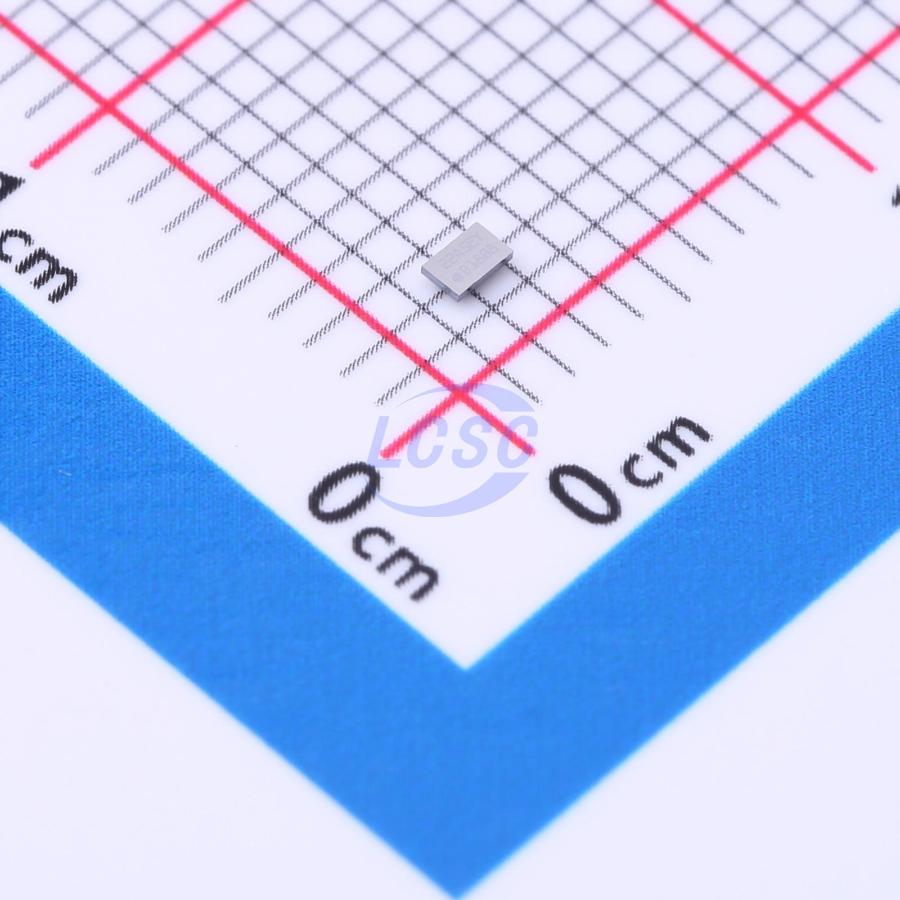

BQ25180YBGR

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: BQ25180YBGR
• LCSC: C3682423
• Category: battery-charger
• Description: BQ25180YBGR 5.5V Voltage - Supply:5.5V Voltage - Supply:5.5V Charge Current - Max:1A Type of Battery:Lithium-ion/Polymer Number of Cells:1 Number of Cells:1 Operating Temperature:-40℃+125℃ Operating Temperature:-40℃+125℃
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: DSBGA-8(1.1x1.6)
• Pin count: Unknown
• EasyEDA symbol UUID: c9e74564cc464ddab2ab951f97a2ccfb
• EasyEDA footprint UUID: 24632a3d2b4042ab9c441dff620a6bc9
• EasyEDA device UUID: d4dbcc10a0f5405eb7a61d4939f4c8f1
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 5.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common battery management, USB-C power, and power-path seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/bq25180
• Product URL: https://www.ti.com/cn/lit/gpn/bq25180
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category battery-charger, interfaces none captured, package DSBGA-8(1.1x1.6), and EasyEDA footprint UUID 24632a3d2b4042ab9c441dff620a6bc9.
