SRD-05VDC-SL-C

Identity

• Manufacturer: 松乐
• Model / MPN: SRD-05VDC-SL-C
• LCSC: C35449
• Category: relay

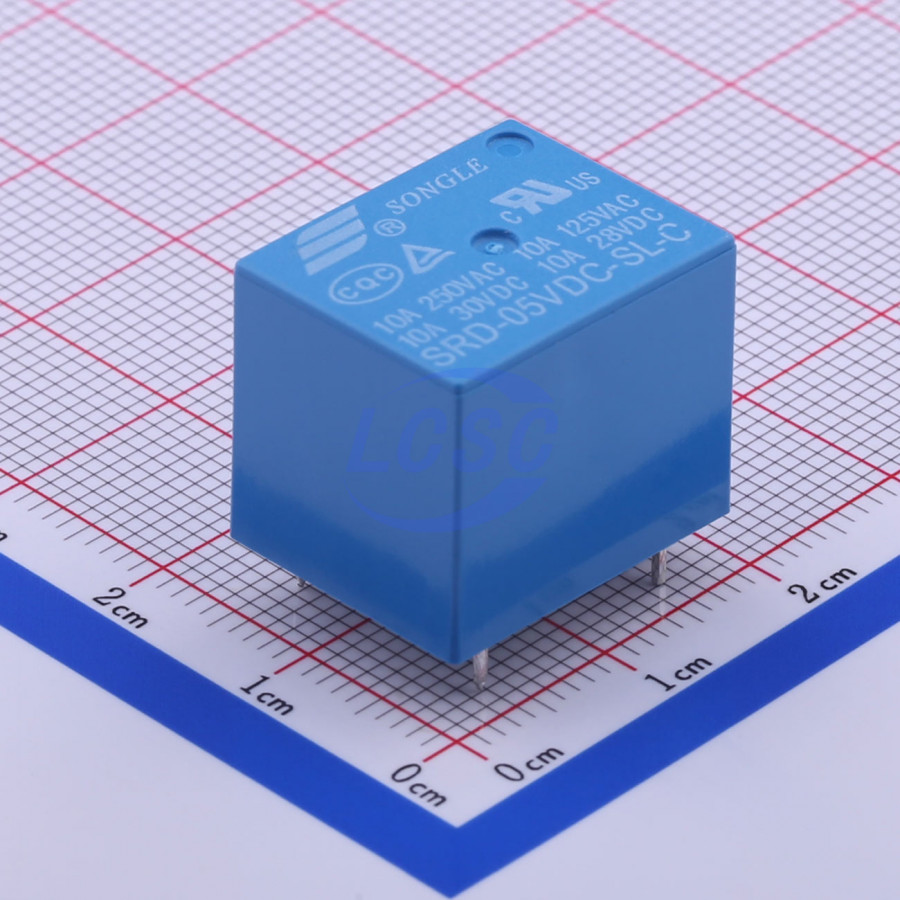

• Description: SRD-05VDC-SL-C blue 1C SPDT changeover relay; 5V coil; 5 pins; max switching 250V@AC, 15A; 360mW; non-polarized; 70Ω coil
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: 插件,19.2x15.6mm
• Pin count: Unknown
• EasyEDA symbol UUID: 2cfc8fdb005846fd94f1e0b966342f82
• EasyEDA footprint UUID: 07c9a42ec6684a3eb58ceaf29c6d10fe
• EasyEDA device UUID: 9f2f6c5d8f68449098435a7f2c98ca1a
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/SRD-05VDC-SL-C/36422.html
• Product URL: https://item.szlcsc.com/datasheet/SRD-05VDC-SL-C/36422.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category relay, interfaces gpio, package 插件,19.2x15.6mm, and EasyEDA footprint UUID 07c9a42ec6684a3eb58ceaf29c6d10fe.
