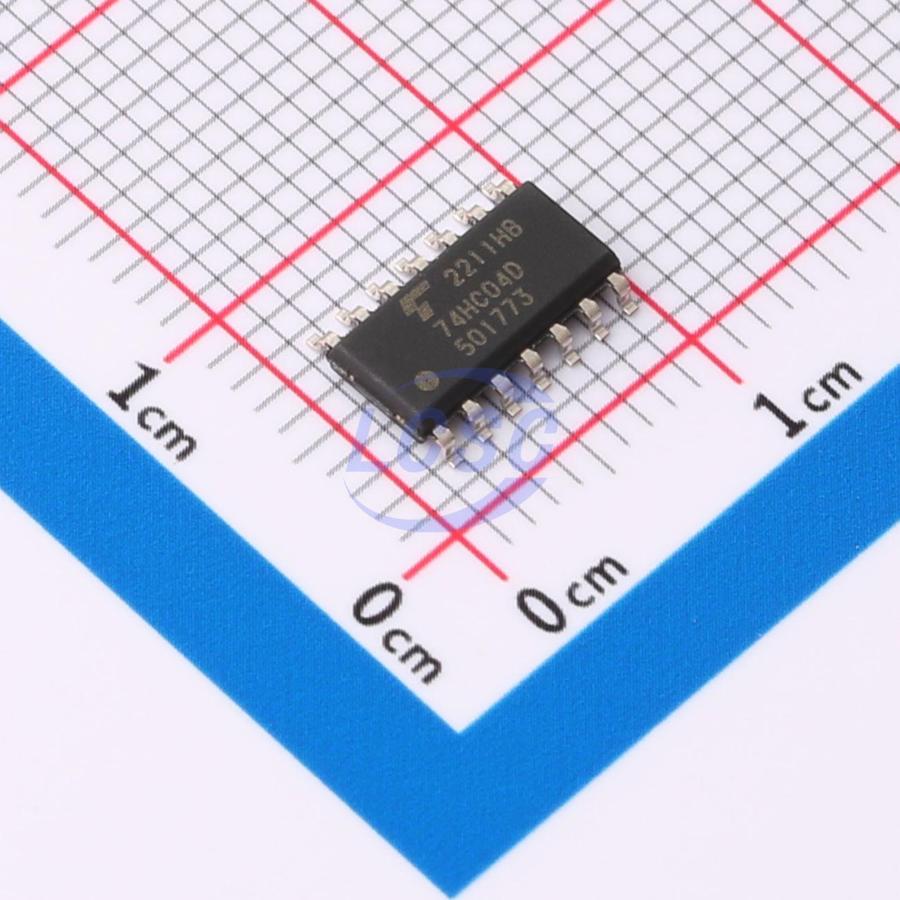

74HC04D

Identity

Manufacturer: TOSHIBA(东芝)
Model / MPN: 74HC04D
LCSC: C3272692
Category: logic-inverter
Description: 74HC04D 2V~~6V Input Type:- Voltage - Supply:2V~~6V Voltage - Supply:2V~~6V Quiescent Current(Iq):1uA Number of Circuits:6 Number of Inputs:1 Current - Output Low(IOL):5.2mA Current - Output High(IOH):5.2mA Input Logic Level - High:1.5V~~4.2V Input Logic Level - High:1.5V~
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

gpio: interface

Package And Footprint

Package / footprint name: SOIC-14
Pin count: 14
EasyEDA symbol UUID: 0bf978a90b81473f9b55cc63e26385ba
EasyEDA footprint UUID: 22debbb9cd4e414f9c7822b456ac3b41
EasyEDA device UUID: e1ca790af97041af9aa26f238dadda9b
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 2V~6V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common logic, level-shifting, bus-interface, and analog-switch seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/74HC04D/3835589.html
Product URL: https://item.szlcsc.com/datasheet/74HC04D/3835589.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: logic inversion, oscillator support, reset polarity conversion, and compact digital glue
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category logic-inverter, interfaces gpio, package SOIC-14, and EasyEDA footprint UUID 22debbb9cd4e414f9c7822b456ac3b41.
