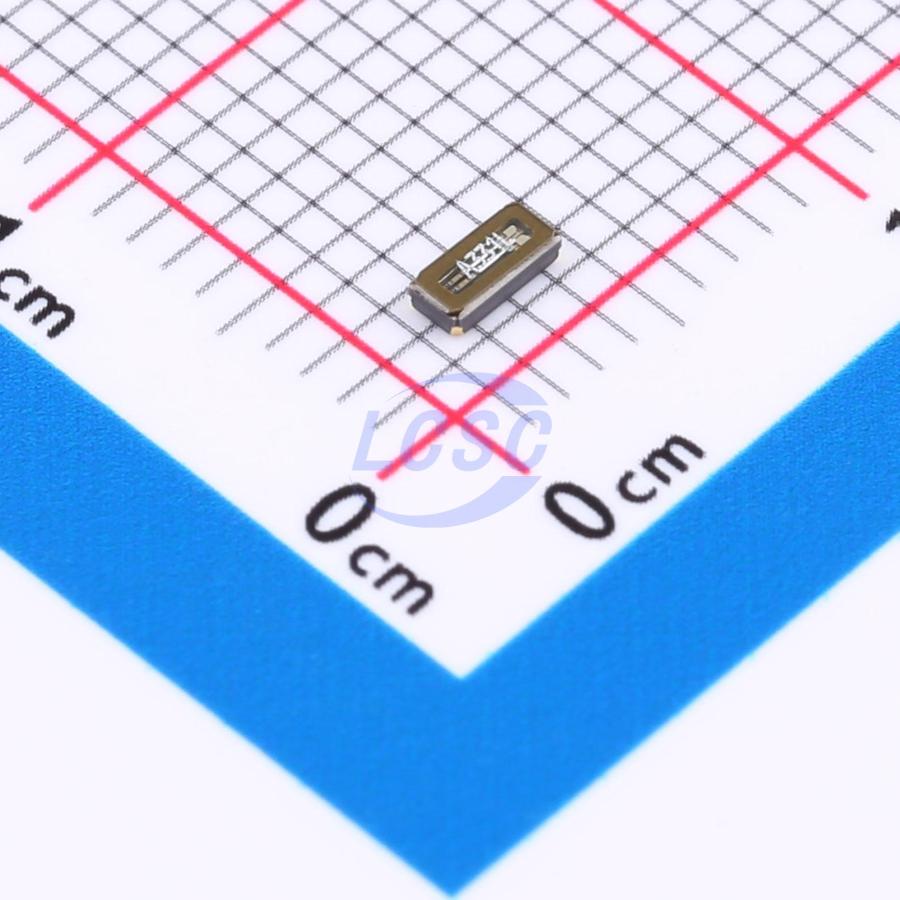

Q13FC13500004

Identity

• Manufacturer: EPSON(爱普生)
• Model / MPN: Q13FC13500004
• LCSC: C32346
• Category: crystal
• Description: 32.768kHz ±20ppm 12.5pF Crystal Oscillator 32.768kHz Type:Crystal Oscillator Frequency:32.768kHz Normal temperature Frequency Tolerance:±20ppm Normal temperature Frequency Tolerance:±20ppm Load Capacitance:12.5pF Equivalent Series Resistance(ESR):70kΩ Operating Temperature:-40℃~+85℃ Operating Temperature:-4
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: SMD3215-2P
• Pin count: 2
• EasyEDA symbol UUID: f5ef9f363c654cd28842880b4d2860d7
• EasyEDA footprint UUID: 813d1698204e457db89dc87e2eff27ea
• EasyEDA device UUID: 96d583fa501e4723a2ab9fdd42b28925
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Basic Part
• JLC note / assembly basis: EasyEDA/JLC verified common board support, timing, EMI, and protection seed
• Assembly status: jlc_basic
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/Q13FC13500004/33310.html
• Product URL: https://item.szlcsc.com/datasheet/Q13FC13500004/33310.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category crystal, interfaces none captured, package SMD3215-2P, and EasyEDA footprint UUID 813d1698204e457db89dc87e2eff27ea.
