TS-1187A-B-A-B

Identity

• Manufacturer: XKB Connection(中国星坤)
• Model / MPN: TS-1187A-B-A-B
• LCSC: C318884
• Category: tactile-switch

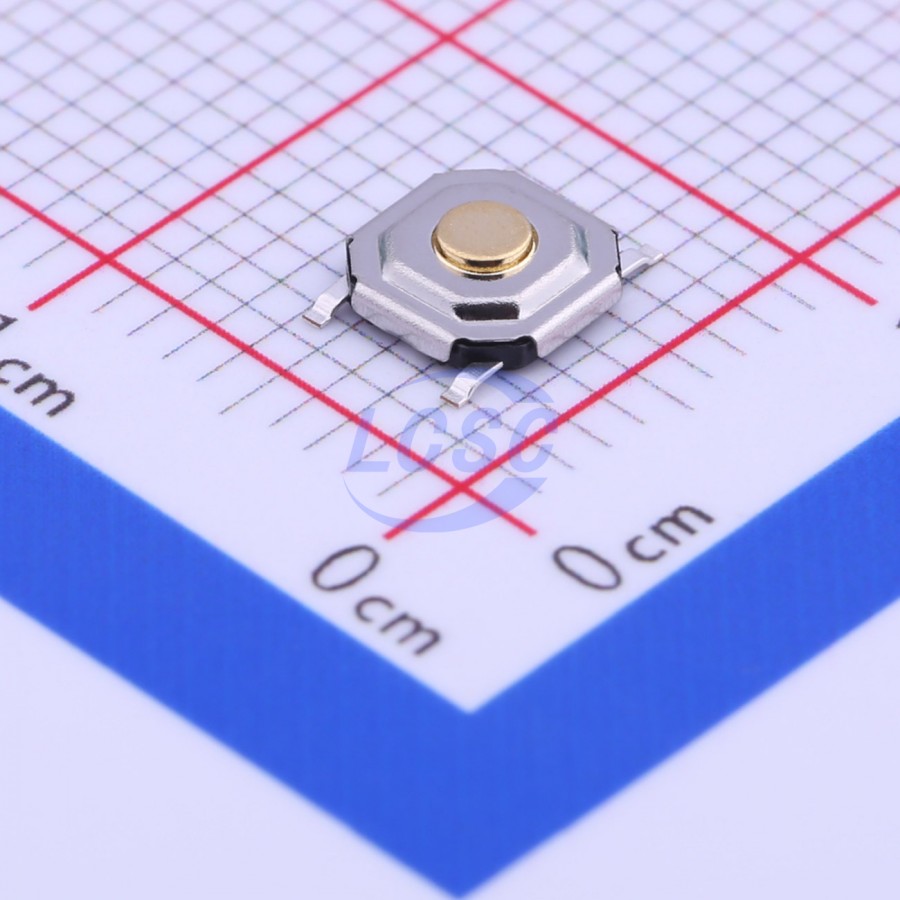

• Description: TS-1187A-B-A-B 5.15.11.5mm vertical SMT tactile switch; SPST; 1.6N; 50mA; 12V; gold round button; without bracket
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: SMD
• Pin count: Unknown
• EasyEDA symbol UUID: 49fadfc6e4e3470797c0ab1a98d3bec7
• EasyEDA footprint UUID: 5ec794aa49f14c93bb742d529d134e8a
• EasyEDA device UUID: 38630614a58f4650bd5eefe9a5f79d9a
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: 12V
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Basic Part
• JLC note / assembly basis: EasyEDA/JLC verified common IoT basics seed
• Assembly status: jlc_basic
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/TS-1187A-B-A-B/299976.html
• Product URL: https://item.szlcsc.com/datasheet/TS-1187A-B-A-B/299976.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category tactile-switch, interfaces gpio, package SMD, and EasyEDA footprint UUID 5ec794aa49f14c93bb742d529d134e8a.
