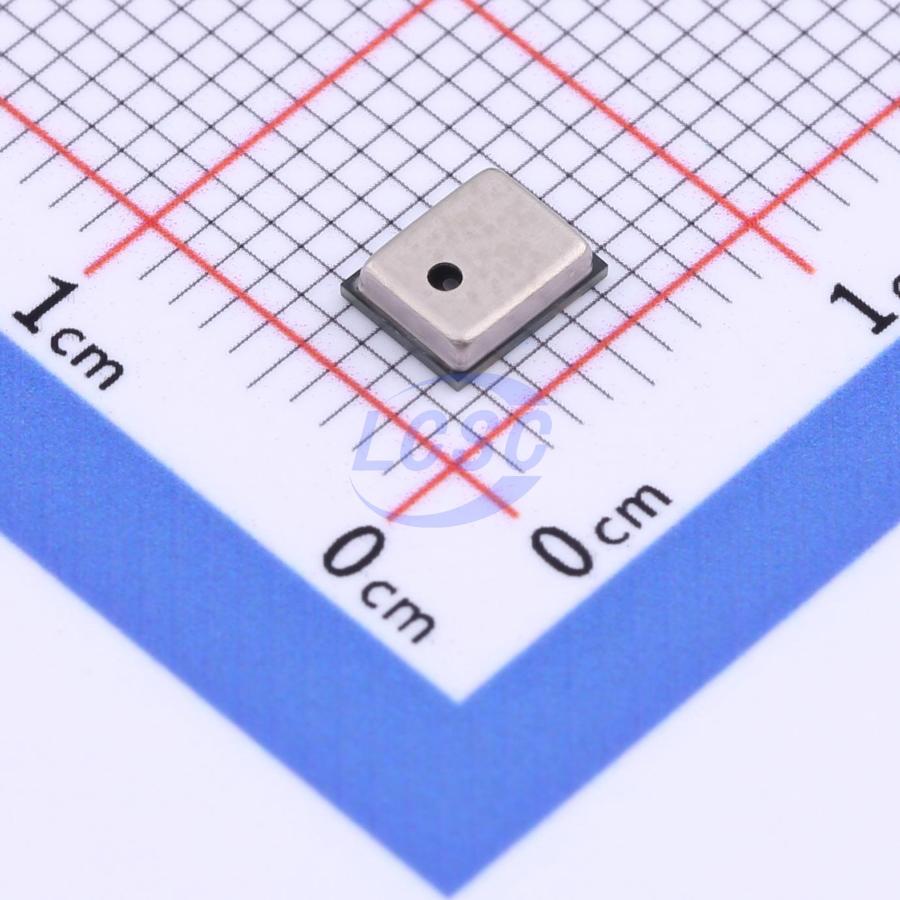

AGS10

Identity

• Manufacturer: 广州奥松
• Model / MPN: AGS10
• LCSC: C3012632
• Category: air-quality-sensor
• Description: AGS10 integrated VOC sensor with I2C interface
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

• Package / footprint name: SMD-4P,5x4mm
• Pin count: 4
• EasyEDA symbol UUID: 09ffbb42a17647b3865eecd0cbb303a4
• EasyEDA footprint UUID: 999ed7b370534463977f7c4b9dbf4559
• EasyEDA device UUID: d97956c7fdbf47febf76004359f8e4b6
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/AGS10/3517701.html
• Product URL: https://item.szlcsc.com/datasheet/AGS10/3517701.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: VOC/TVOC air-quality estimation, indoor-air monitoring, enclosure contamination checks, and ventilation triggers
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category air-quality-sensor, interfaces i2c, package SMD-4P,5x4mm, and EasyEDA footprint UUID 999ed7b370534463977f7c4b9dbf4559.
