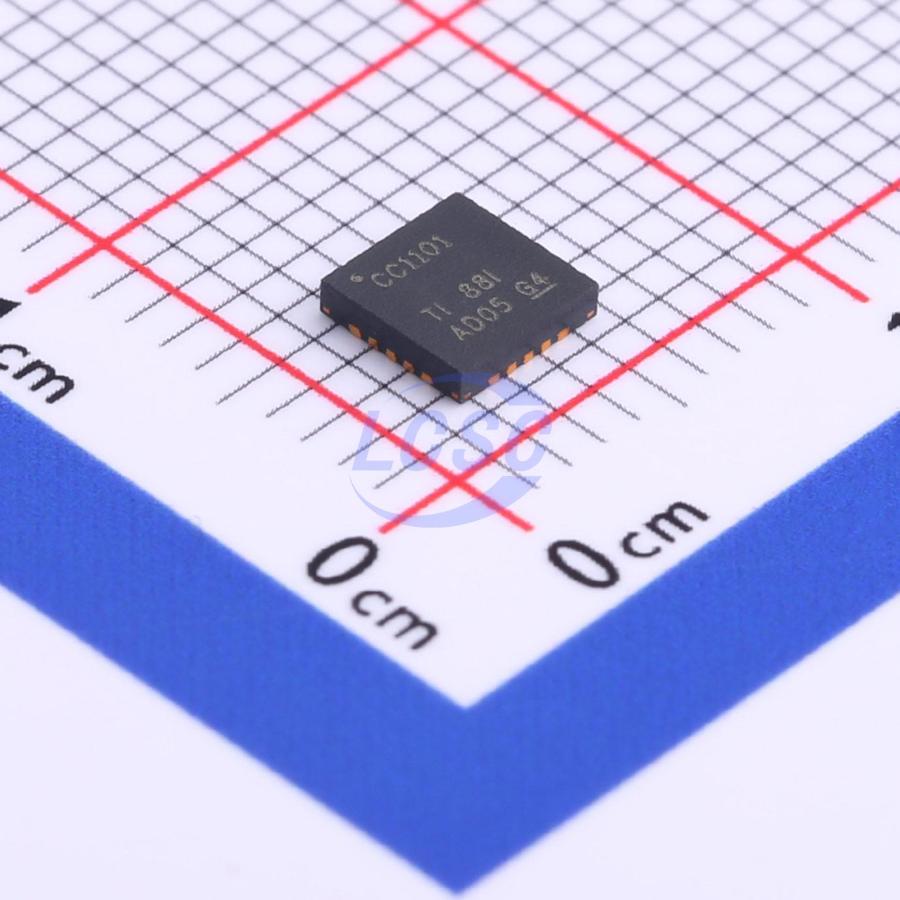

CC1101RGPR

Identity

Manufacturer: TI(德州仪器)
Model / MPN: CC1101RGPR
LCSC: C29953
Category: sub-ghz-transceiver
Description: Low-power RF transceiver for ultra-low-power wireless, SPI, 1.8V~~3.6V, 387MHz~~464MHz;300MHz~~348MHz;779MHz~~928MHz, ISM, 12dBm, 500Kbps.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

spi: interface

Package And Footprint

Package / footprint name: QFN-20-EP(4x4)
Pin count: 20
EasyEDA symbol UUID: ae08ef0858874bc695b2529e7f9a1e47
EasyEDA footprint UUID: b49e76ff462f423ea6d70d3f0f5e953d
EasyEDA device UUID: 378ae9206ed74137802e2449df5fe642
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: EasyEDA property: 15.7mA.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: EasyEDA property: 1.8V~3.6V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connectivity, positioning, and RF interface seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://www.ti.com/cn/lit/gpn/cc1101
Product URL: https://www.ti.com/cn/lit/gpn/cc1101
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category sub-ghz-transceiver, interfaces spi, package QFN-20-EP(4x4), and EasyEDA footprint UUID b49e76ff462f423ea6d70d3f0f5e953d.
